2-axis Detachable Hydraulic Gooseneck Lowbed Semi-trailer
2-axis detachable hydraulic gooseneck lowbed semi-trailer (1)
2-axis detachable hydraulic gooseneck lowbed semi-trailer (4)
2-axis detachable hydraulic gooseneck lowbed semi-trailer (7)

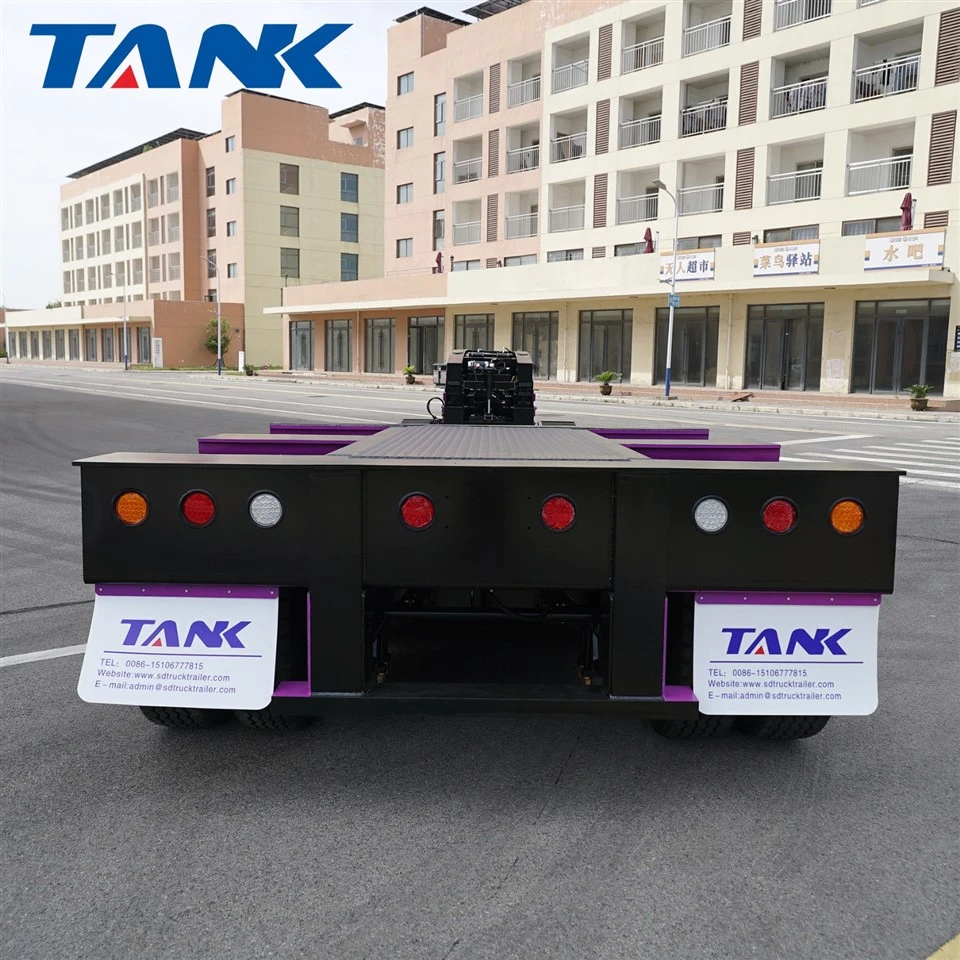

2-axis detachable hydraulic gooseneck lowbed semi-trailer (9)

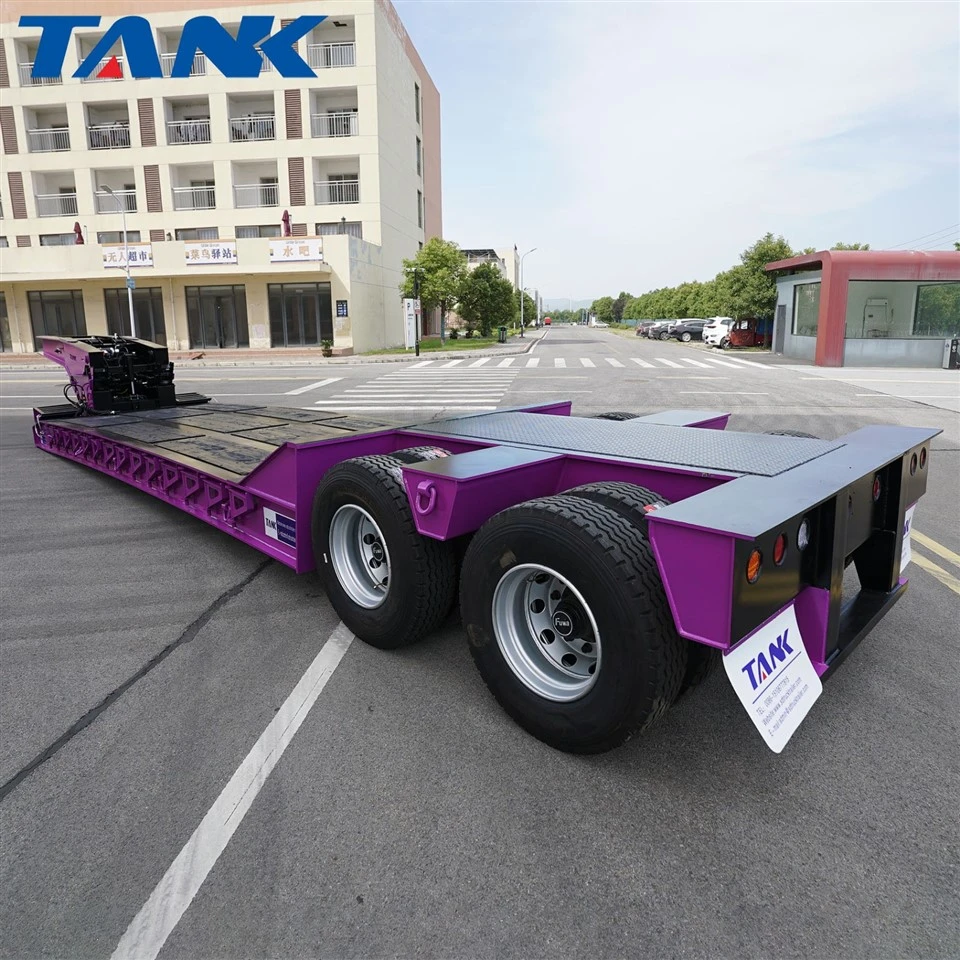

2-axis detachable hydraulic gooseneck lowbed semi-trailer (11)
2-axis detachable hydraulic gooseneck lowbed semi-trailer (13)
2-axis Detachable Hydraulic Gooseneck Lowbed Semi-trailer
Products Description
2-axis detachable hydraulic gooseneck lowbed semi-trailer
2-axle hydraulic gooseneck lowbed trailer, front-mounted design with detachable gooseneck; equipped with FUWA axles, WABCO brand ABS braking system, and a combined floor consisting of chequered plate and wooden planks.
Parameter Configuration ：
|
Specification of product |
Tare weight :13000kg(approx) Size:14000mm*2600mm(extend to 3200mm)*1800mm(approx) Payload:40T Goose neck:Hydraulic detachable goose neck,include hydraulic system Main beam:Top flange 18mm;Middle Flange 6+6mm ;bottom flange20mm. Floor Thickness:4mm checkered plate+5mm wood floor Axle:FUWA brand 2 axles 16T Suspension: mechanical suspension 10pcs*16mm*100mm Ladder:without Tire:12R22.5 china brand 8pcs Wheel rim:9.0-22.5 china brand 8pcs Kingpin:JOST 3.5" bolt-in king pin Landing gear:without Braking system:WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks ABS:WABCO ABS Light:LED 8 side lights and 2 rear lights 2 width lamp Painting:complete chassis sand blasting to clean rust ,1coat of anti corrosive prime,2coats of final paint. Color:Optional Accessories: one shaft head wrench,four side light,two rear light |

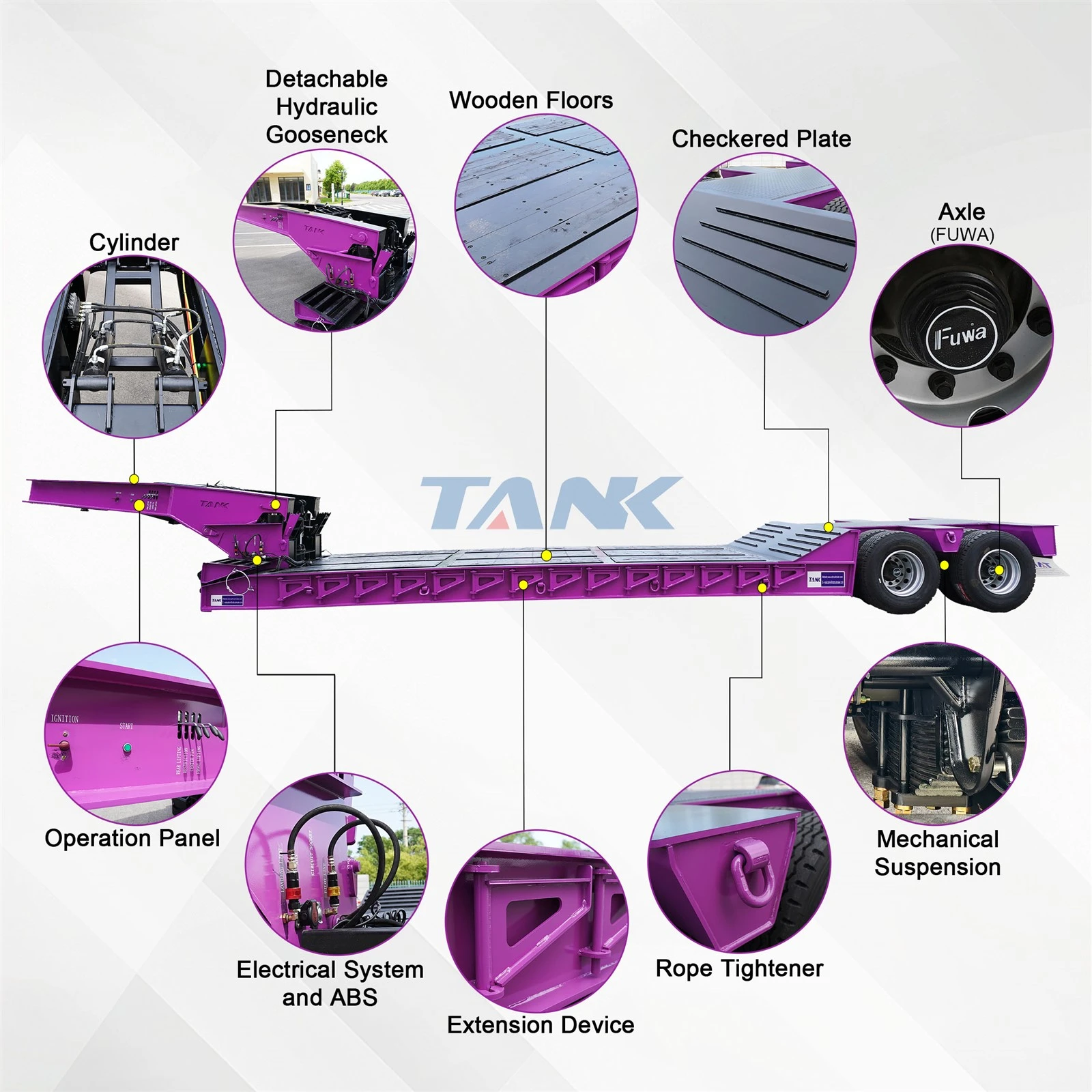

Products Details Details of 2-axle hydraulic gooseneck lowbed trailer
2-axle hydraulic gooseneck lowbed trailer video display
production proces
Stype 1
Welding main beam:Top flange 18mm,width140mm;Middle Flange 8mm height 500mm;bottom flange20mm,width 140mm
stype 2
Main structure installation: Mounting the gooseneck to the chassis, grinding weld seams, applying primer (or anti-rust treatment), and preparing for painting.
Stype 3
Paint application: Protective measures are taken for different colors to prevent overspray and color bleeding.
Stype 4
After the paint surface has fully dried and leveled, install the electrical wiring, pneumatic systems, and accessory components.
Stype 5
Vehicle final testing: Upon completion, the vehicle is fully finished and ready for factory delivery.
