3 Axle Cement Tanker Semi Trailer
Volume: 30 m³
Payload: 36000kgs
Size: 10100mm*2550mm*3850mm
Axles: FUWA brand Landing Gears: JOST brand
Suspension: Standard air suspension.The first axle and whole trailer is lift-able.
Brake System: 2 lines pneumatic brake system,T30/30 brake chamber;WABCO Emergency relayvalve
Products Description
3axle cement tanker semi trailer
The 3axle cement tanker semi trailer is a specialized vehicle designed for the road transportation of dry powder granular materials such as bulk cement, fly ash, and lime powder. Its key feature lies in the fact that the semi-trailer part has three axles (6 tires) and is equipped with a sealed pressure tank that uses the principle of fluidization for loading and unloading.The tank is the core component, usually made of 4mm high-strength steel Q355B. Its cross-section is mostly circular or elliptical, featuring high compressive and sealing performance. An agitator bed (with perforated plates) and a sliding slope are installed inside to ensure smooth material flow.
Efficient loading and unloading, sealed transportation
The entire process is sealed, which significantly reduces material loss (avoiding the loss caused by broken bags of cement) and dust pollution, and has good environmental performance. Using pneumatic unloading, it is fast (usually it can complete the unloading of one truck in 30 to 50 minutes), with high automation level, which greatly saves manpower and time costs.
High load capacity with legal and compliant compliance
In road regulations of China and many other countries, the legal gross loading capacity of three-axle semi-trailers (approximately 33-35 tons, with a total vehicle and cargo weight of about 49 tons) is significantly higher than that of two-axle semi-trailers, making them more economically viable for transportation. Adding an extra axle improves the stability and safety of the vehicle during driving, turning and braking, and is particularly suitable for long-distance and heavy-load transportation.
|
MODEL |
3axle 30cbm cement tanker semi trailer |
|
Quantity |
1set |
|
Description of goods |
Size: 10100mm*2550mm*3850mm Volume: 30 m³ Wheel base: 1-2 axle:1310 mm;2-3 axle:1310 mm ;wheelbase:52500mm Height of fifth wheel: According to customers requirements Tare Mass: 7500kgs(± 3%) Payload: 36000kgs Suitable Truck: Type:4x2 and 6x4 Tankbody: 4mmhigh strength steel Q355B Endplate: 5mmhigh strength steel Q355B Painting: Steel blasted +Acrylicpolyurethane paint,color optional Engine: Weichai brand 4102 Air compressor: Bohai brand Kingpin: O 2"bolt in type kingpin Axles: FUWA brand 13tonnes axles 3pcs Suspension: Standard air suspension.The first axle and whole trailer is lift-able. Landing Gears: JOST brand A300 Tire: 385/65R22.5 6pcs Wheel rim: 11.75-22.5 6pcs Brake System: 2 lines pneumatic brake system,T30/30 brake chamber;WABCO Emergency relayvalve Lighting System: Lighting system with 24Volt LED lighting set.LED side,front and back marker lamps with reflectors.Reflective band located on sides and at the rear. ABS: WABCO ABS Accessories: 1 piece spare tire carrier,1 piece tool box,2 pieces of anti-spray mud guards on 3th axle.,2pieces yellow wheel chokes with holder,2pieces fire extinguishers |
Products Details
Landing Gear
JOST brand A300
Safety Valve
Prevent overpressure and ensure operational safety
Diesel Engine
Drive the air compressor and continuously supply compressed air to the bottom of the tank
Axle
FUWA brand 13tonnes axles 3pcs
Check Valve
Prevent backflow and protect the equipment
Electrical System
The "nervous system" of the sem-trailer
Air Compressor
Power producer of the unloading system
Logistics machinery
Standard air suspension.The first axle and whole trailer is lift-able

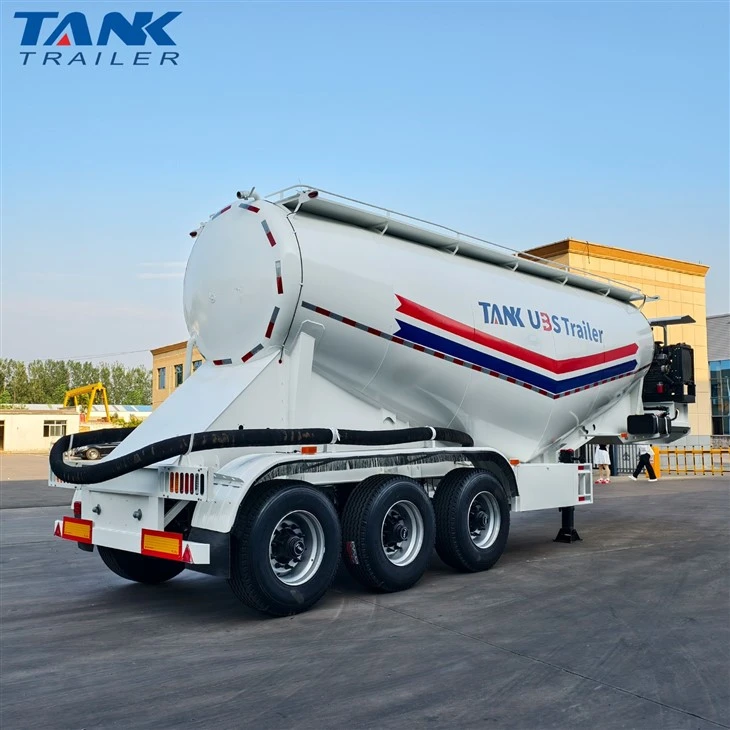

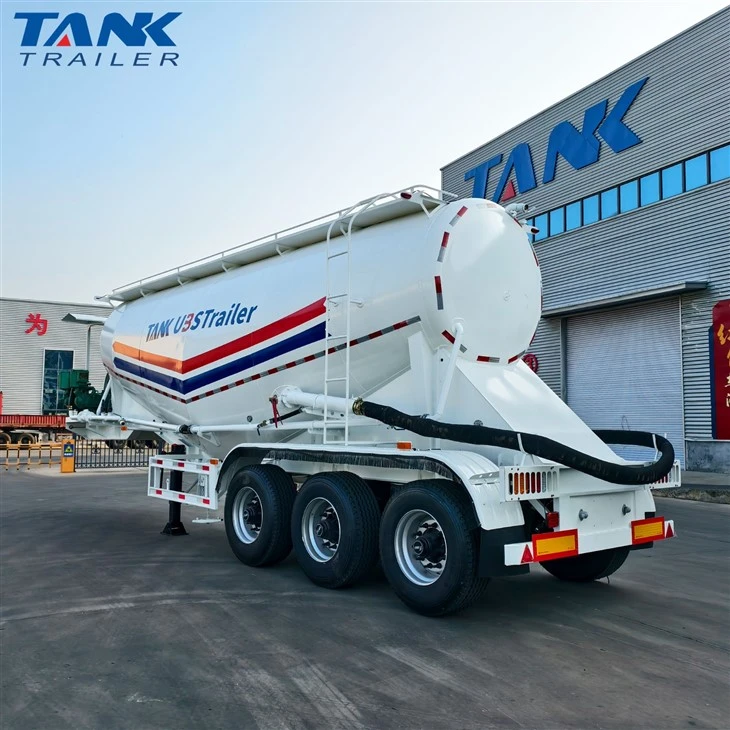

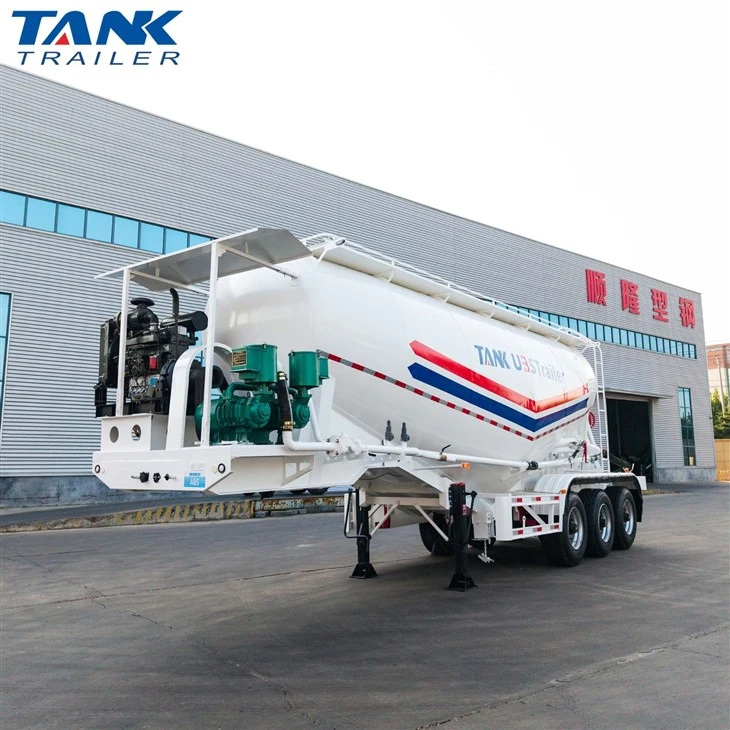

The show of the 3 axle cemen tanker semi-trailer
