4 Axis Curtain Side Semi Trailer
Payload:40T
Floor Thickness:28mm wooden floor
Axle:L1 brand 4pcs 12T
Landing gear:JOST two-speed
ABS:WABCO Brake System:WABCO RE6 relay valve
Suspension:Factory brand air suspension with first axle lifting and whole trailer can lowing and lifting
Products Description
4 axis curtain side semi trailer
This product is a high-performance 4-axle side curtain semi-trailer specially designed for modern and efficient logistics transportation. It integrates multiple industry-leading technologies and configurations, aiming to provide customers with outstanding load-carrying capacity, excellent operational efficiency and comprehensive safety guarantees. It is an ideal solution for the transportation of various types of goods such as less-than-truckload express, building materials, light and bulky goods and electronic products.
The overall dimensions of the vehicle are 17100mm (length) × 2550mm (width) × 4020mm (height). The interior space is square and spacious, which can maximize the utilization of the cargo capacity.
Three-dimensional barrier-free loading and unloading
This curtain side semi-trailer not only does it feature a side curtain design for quick three-sided loading and unloading, but it also innovatively adopts an openable roof. This design achieves true "all-round barrier-free loading and unloading", allowing large, light or special goods to be directly and quickly loaded from the roof through cranes, forklifts and other equipment. The loading and unloading flexibility is unparalleled, greatly enhancing the loading and unloading efficiency and business undertaking capacity.
|
Dimension |
|
|
Length |
External total length:17100mm |
|
Width |
External Body Width:2550mm |
|
Height |
External Body Height:4020mm |
|
Tare Mass |
8800kgs ( ± 3 % ) |
|
Payload |
40T |
|
Suitable Truck |
Type: 4x2 and 6x4 |
|
Structure |
|
|
Chassis |
T700 Top flange 10 mm; Middle Flange 8 mm bottom flange 12mm |
|
Side beam |
160 mm channel steel |
|
Side wall |
no |
|
Floor Thickness |
28mm wooden floor |
|
Floor hook |
28 pcs |
|
Rear door |
Steel |
|
Roof |
the roof can slide to open |
|
Axle |
L1brand 4pcs 12T |
|
Suspension |
Factory brand air suspension with first axle lifting and whole trailer can lowing and lifting |
|
Tier |
245/70R17.5 16 pcs LINGLONG brand |
|
Wheel rim |
7.5-17.5 16pcs |
|
Kingpin |
JOST 50mm bolt-in king pin |
|
Landing gear |
JOST two-speed, manual operating ,heavy duty landing gear 28T |
|
Color |
optional and logo customized |
|
Brake System |
WABCO RE6 relay valve |
|
ABS |
WABCO |
|
Light |
LED 8 side lights and 2 rear lights 2 width lamp |
|
Painting |
complete chassis sand blasting to clean rust ,1coat of anti corrosive prime,2coats of final paint. |
|
Accessories |
one standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
Products Details

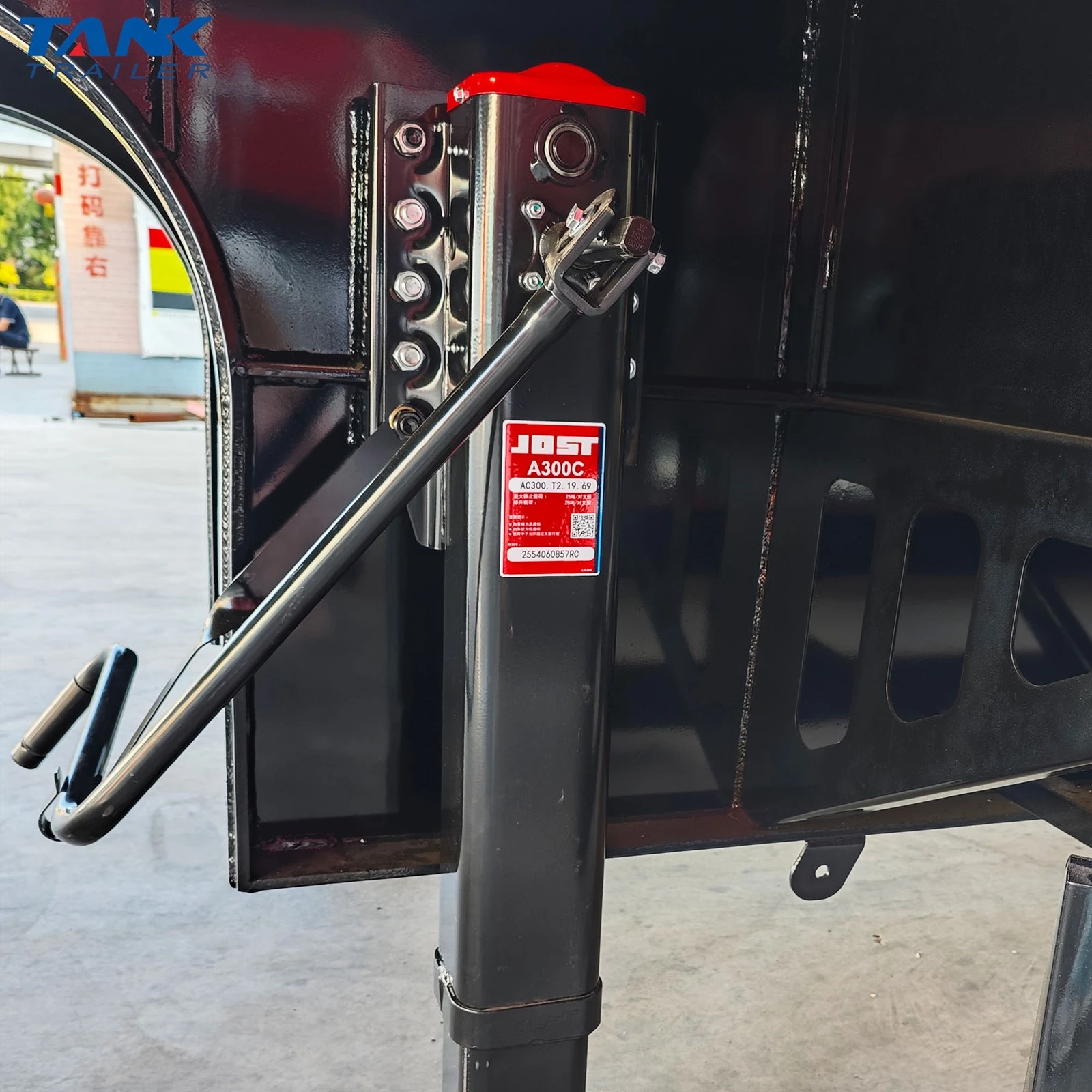

JOST Landing gear
It adopts the world-renowned JOST brand outriggers, with a sturdy and stable mechanical structure. The lifting and lowering are effortless and smooth, ensuring safe parking.

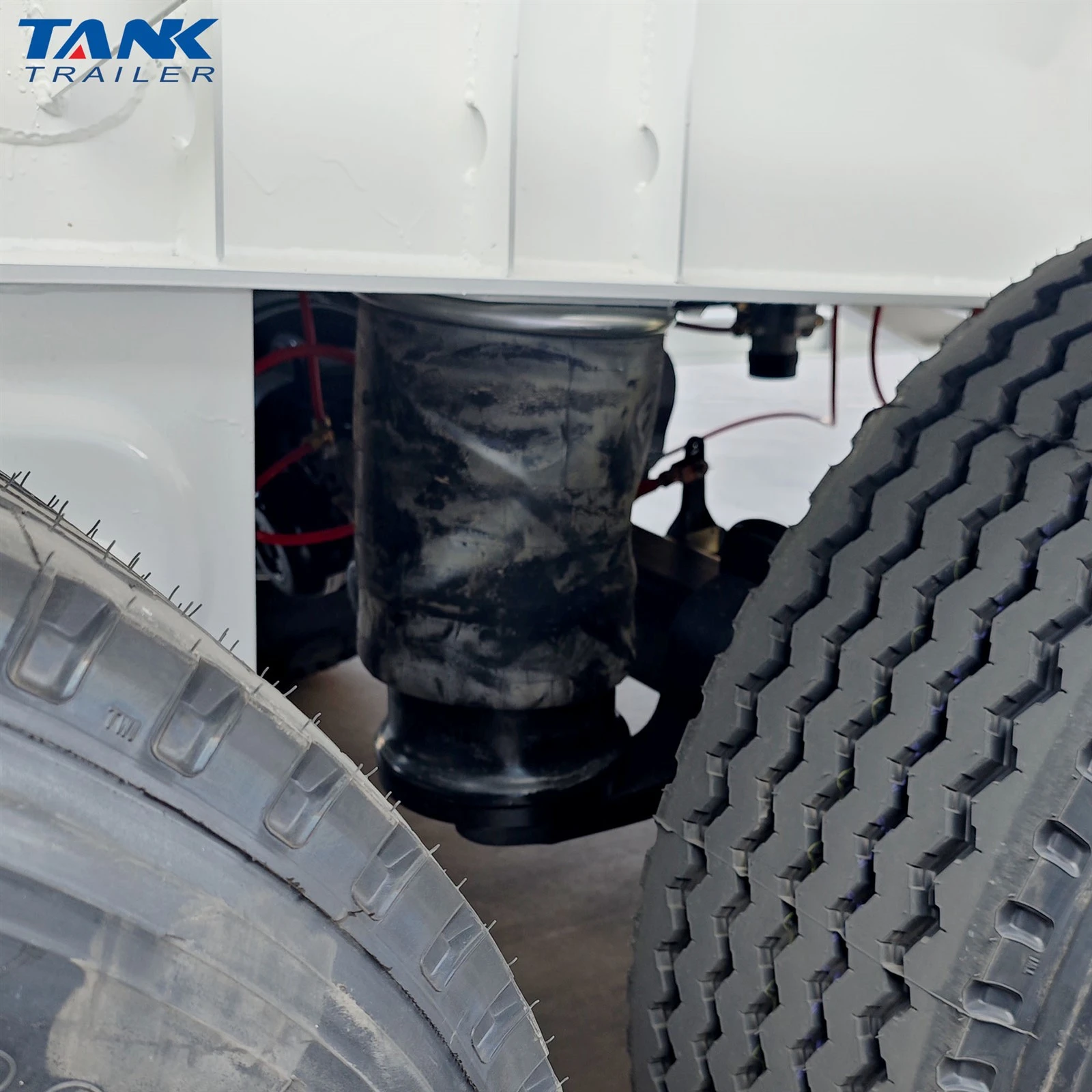

Air Suspension
The air suspension system enables the entire vehicle chassis to rise and the front axle to be lifted. Significantly enhanced the adaptability of the site and operational efficiency, reduced fuel consumption, and saved operating costs.

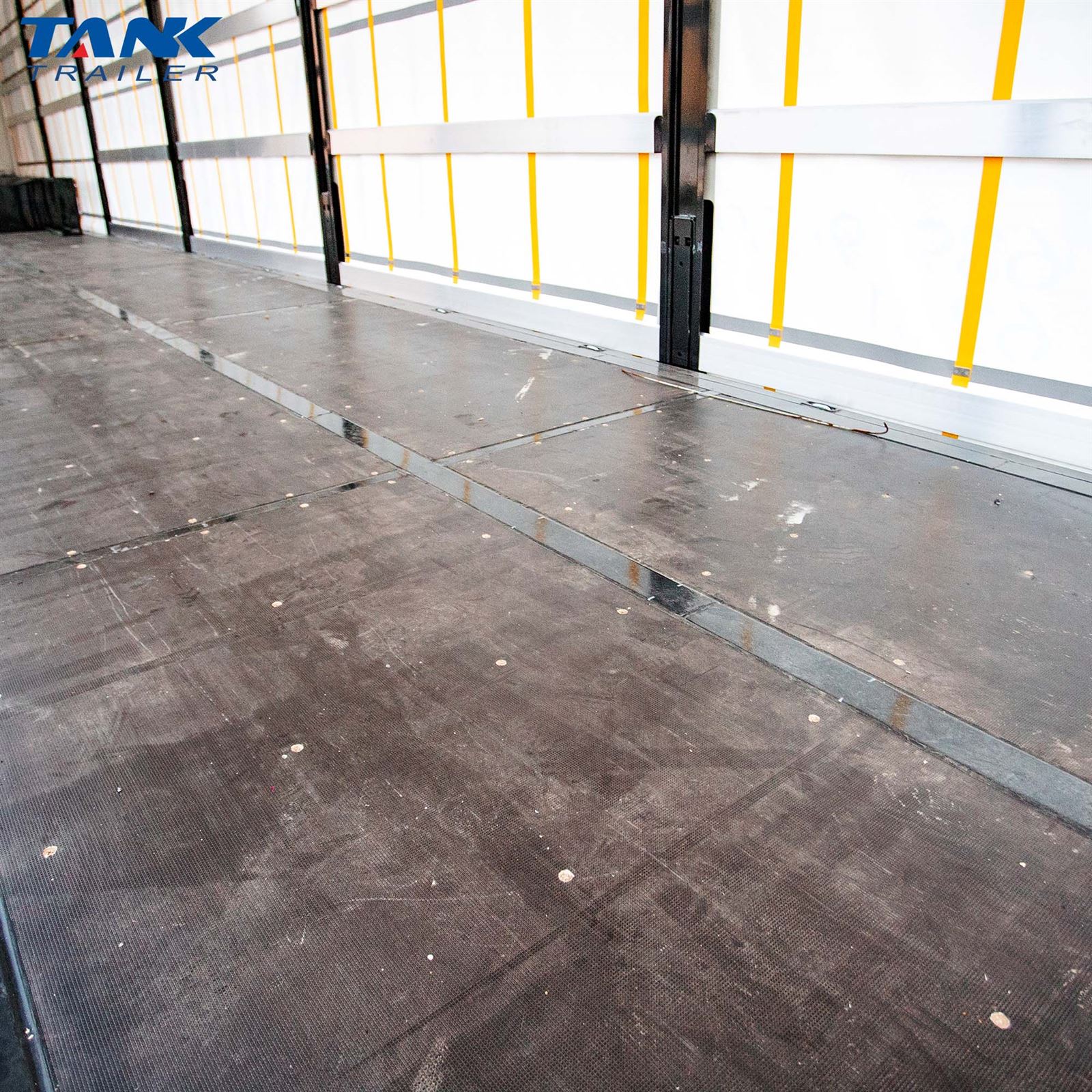

Wooden Floors
The cargo compartment is covered with high-quality wooden flooring, which features excellent compressive resistance, wear resistance and anti-slip performance. It is sturdy and durable, effectively protecting the floor of the cargo compartment and preventing the goods from sliding.

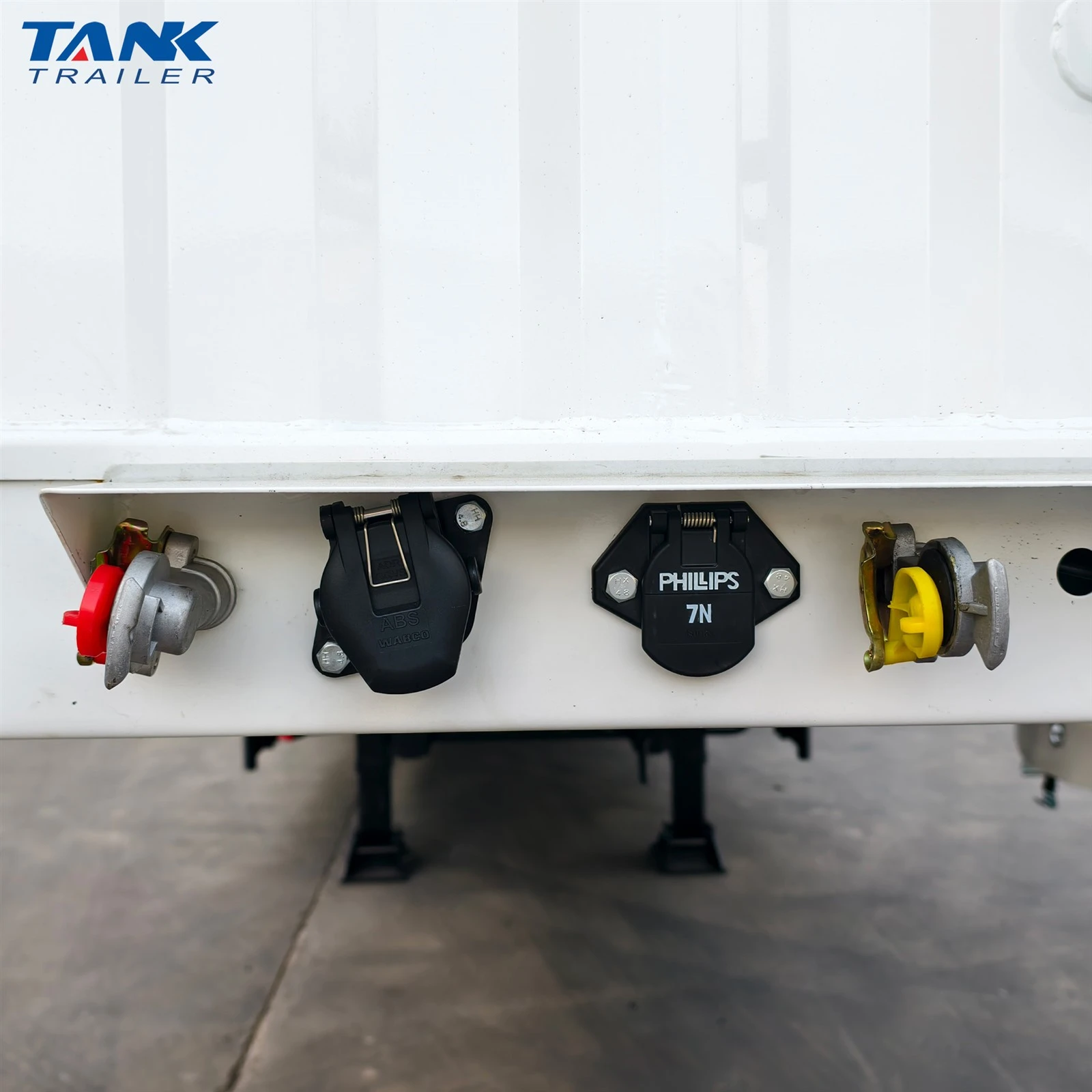

Electrical System
Electrical system: Refers to the power supply and distribution system composed of wires, cables, switches, sockets, and electrical equipment. The labels are clear and easy to use.
Light weight aluminum frame
Ultra-lightweight design, significantly enhancing payload capacity, excellent corrosion resistance, prolonging service life, reducing maintenance costs, and offering benefits such as increased load capacity, fuel savings, reduced maintenance, and high resale value.
Vehicle lifting controller
Based on the actual road conditions and load capacity, the height of the carriage can be quickly adjusted to ensure a perfect alignment between the cargo platform and different heights of the platform, enabling "unified" loading and unloading, and significantly enhancing the adaptability of the site and the operational efficiency.

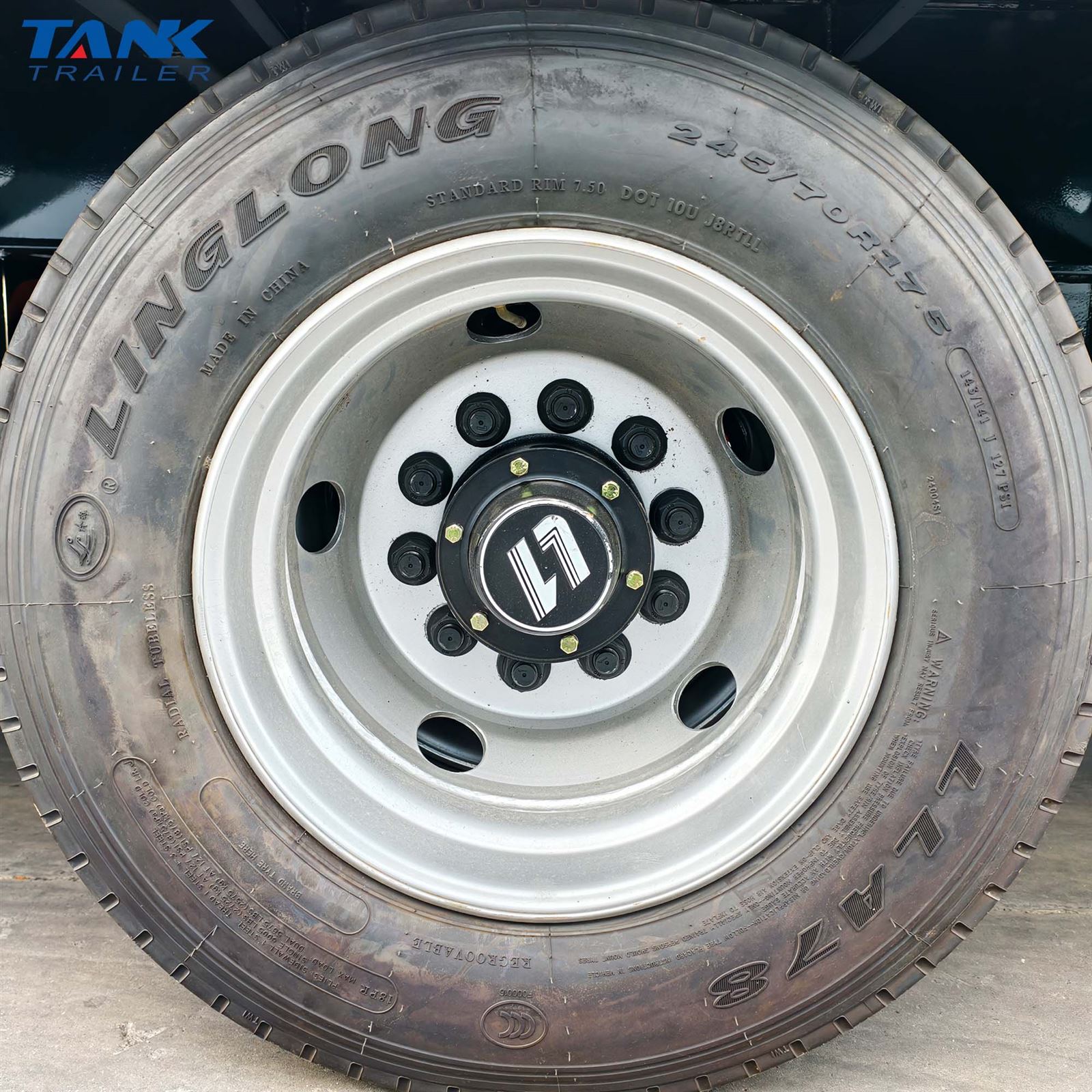

Axle and Tier
Use L1 brand 4-piece 12T axles and 16 pieces of LINGLONG brand tires with 245/70R17.5 specification.
Spare tire carriers
The vehicle accessories also include one standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light

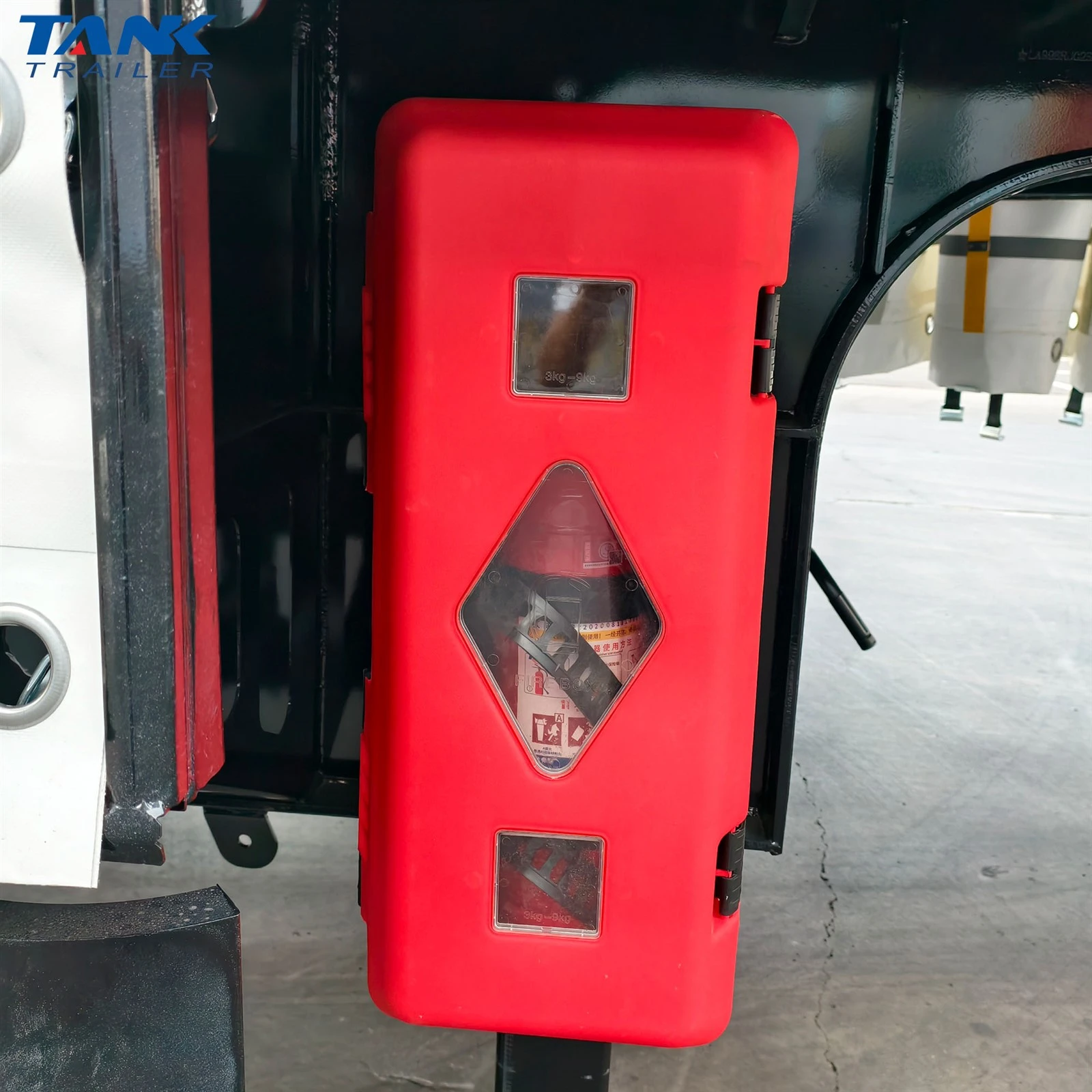

Fire extinguisher
As the customer mentioned that fire extinguishers were frequently lost in their area, we have equipped the customer with 2 high-quality fire extinguisher boxes.

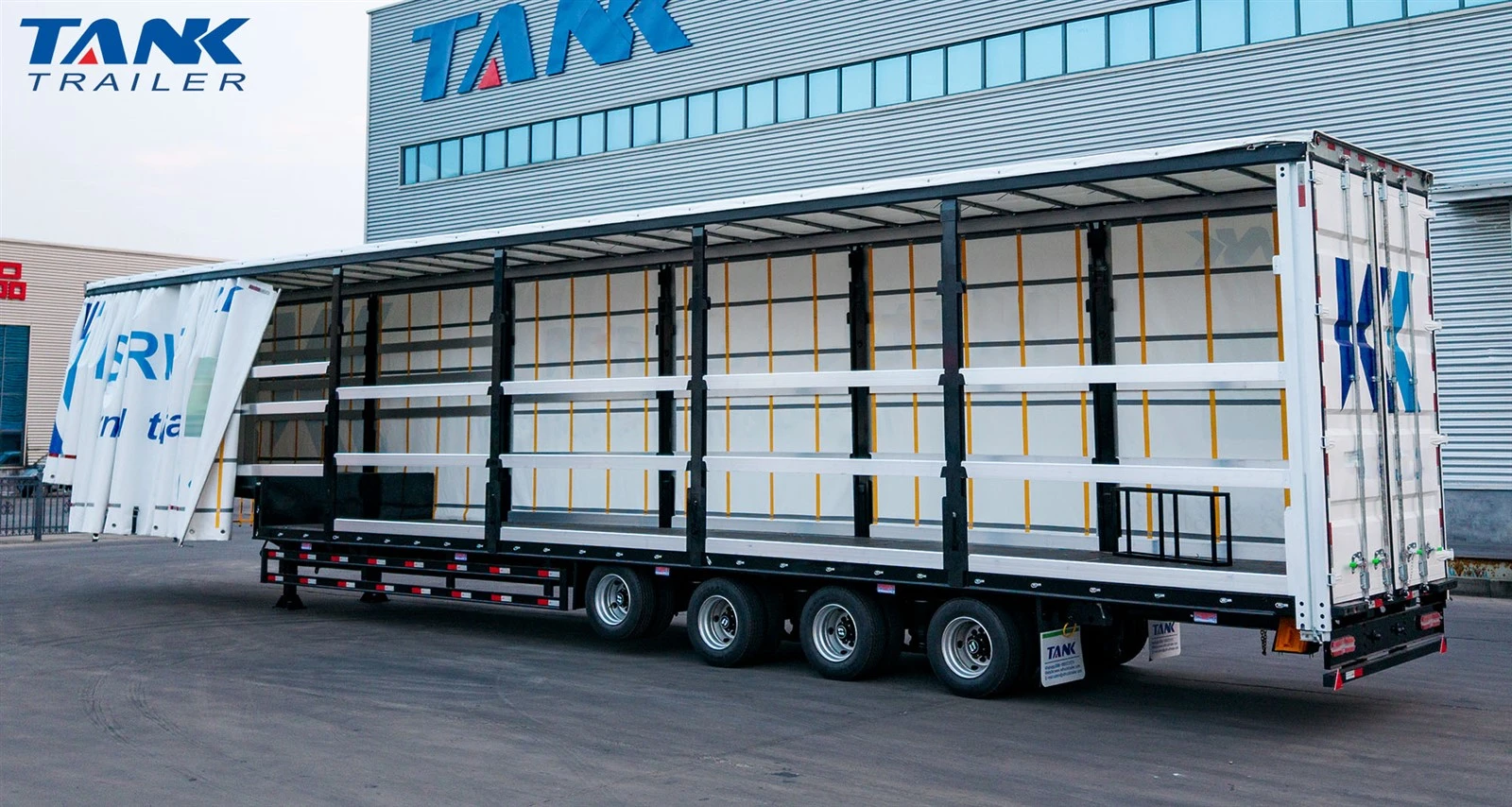

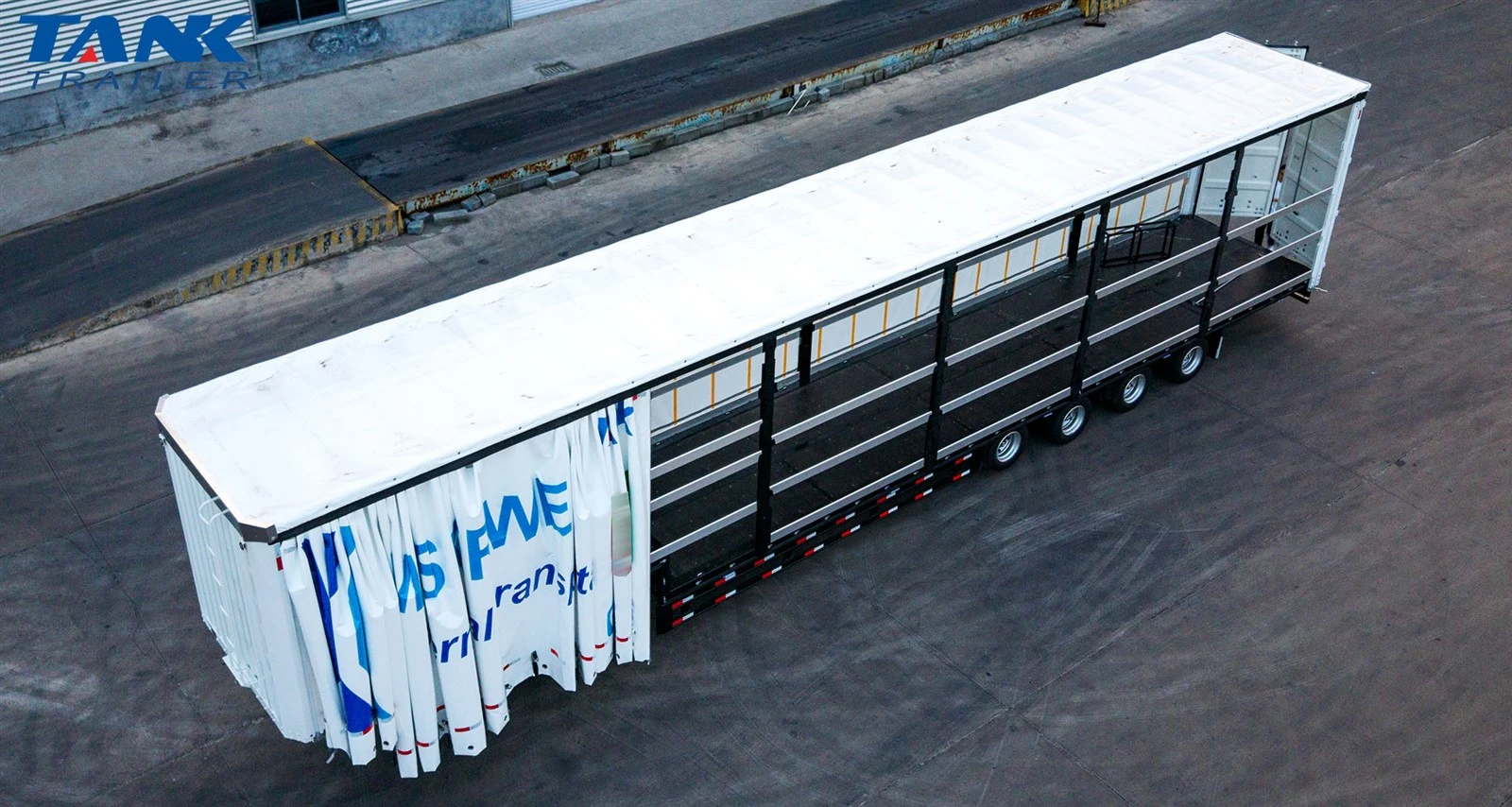

product display
 |
 |
 |
 |
This 4-axle side curtain semi-trailer, with its core advantages such as super large capacity, strong load capacity, efficient loading and unloading, excellent safety and ultra-low operating costs, perfectly meets the urgent demand of modern logistics for "carrying more and running faster, reducing costs and increasing efficiency". Choosing it means choosing a reliable, efficient and intelligent transportation partner, which will surely create greater value for your logistics business.
