Box Type

Your Professional Box Type Supplier

Shandong tank automobile company limited is a professional semi trailer and trailer parts exporter. Our company have our own semi trailer and trailer parts factory. Our factory covering an area of 200000 square meters, and over 130 employees.

At present, the company mainly specializing in manufacturing special vehicles such as low bed semi trailer, flatbed semi trailer, oil tank semi trailer, bulk cement semi trailer, dumper semi trailer and so on. And our trailer parts factory mainly manufacture semi trailer axle, suspension and landing gear.

First 12 Last 1/2

Why Choose Us

Quality Assurance

Our boasts strong technical force, advanced line production equipment of welding and excellent quality guarantee system, modern testing means and high qualified specialist technicians, making the products trusted and welcomed widely by the users.

Our Service

Pre sales: We can support professional technical. We have experienced technicians who design the most reasonable trailers for our customers.

In sale: Track trailer production progress and share real-time product status with customers in a timely manner.

After sales: Equipped with various vulnerable parts, track the usage of customer vehicles, and promptly solve problems found.

Affordable

We have a professional purchasing team and costing team, trying to reduce costs and profits, and provide you with a good price.

Specification

Dimension
Length	External total length:17100mm
Width	External Body Width:2550mm
Height	External Body Height:4020mm
Tare Mass	8800kgs ( ± 3 % )
Payload	40T
Suitable Truck	Type: 4x2 and 6x4
Structure
Chassis	T700 Top flange 10 mm; Middle Flange 8 mm bottom flange 12mm
Side beam	160 mm channel steel
Side wall	No
Floor Thickness	28mm wooden floor
Floor hook	28 pcs
Rear door	Steel
Roof	The roof can slide to open
Axle	L1brand 4pcs 12T
Suspension	Factory brand air suspension with first axle lifting and whole trailer can lowing and lifting
Tier	245/70R17.5 16 pcs LINGLONG brand
Wheel rim	7.5-17.5 16pcs
Kingpin	JOST 50mm bolt-in king pin
Landing gear	JOST two-speed, manual operating ,heavy duty landing gear 28T
Color	Optional and logo customized
Brake System	WABCO RE6 relay valve
ABS	WABCO
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anti corrosive prime,2coats of final paint.
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light

Types of Box Type

The box type produced by our company mainly include the following types:

3-Axis Refrigerated Semi-Trailer

The refrigerated semi-trailer is a special vehicle specifically designed for transporting goods that require constant temperature preservation or freezing. It is widely used in industries such as food, medicine, and chemicals. The cabin is equipped with a renowned brand Carrier 7300 refrigeration unit, which precisely regulates the cabin temperature according to the cargo requirements.

4 Axis Curtain Side Semi Trailer

This product is a high-performance 4-axle side curtain semi-trailer specially designed for modern and efficient logistics transportation. It integrates multiple industry-leading technologies and configurations, aiming to provide customers with outstanding load-carrying capacity, excellent operational efficiency and comprehensive safety guarantees.

3 Axle Refrigerated Semi Trailer

Refrigerated semi-trailer refers to a semi-trailer equipped with insulation facilities and refrigeration system, mainly used for transporting food and goods that require low-temperature preservation.

Van Type Logistics Transportation Curtain Side Semi-Trailer

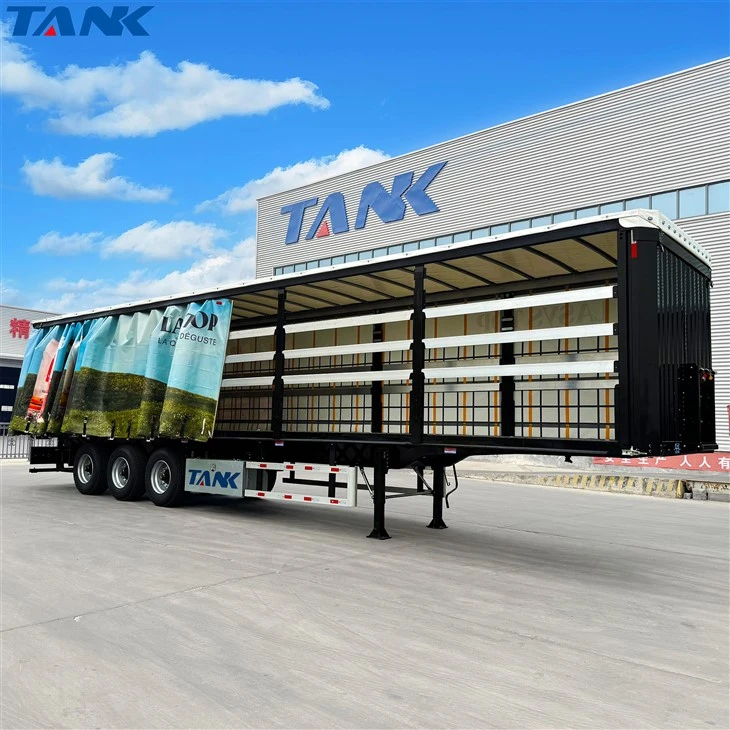

3 Axle Side Curtani Semi-Trailer

This is a side curtain semi-trailer that was specially customized according to the configuration requirements of an Algerian customer. It is equipped with functions for raising the entire chassis and the front axle. The roof can be opened. The braking system uses Haldex EBS. For specific configurations, please refer to the product details.

Side Curtain Semi Trailer

This side curtain semi-trailer is customized according to the special requirements of an Algerian customer. It features a chassis and front axle lifting function as well as an openable roof, making it suitable for efficient loading and unloading as well as diverse transportation scenarios.

3 Axle Van Box Side Curtain Semi Trailer

With its advantages of fast handling, flexible adaptation and lightweight, side curtain semi-trailer is widely used in scenarios requiring efficient transportation, especially for the logistics needs of palletized cargo and frequent loading and unloading operations.

Benefits of Box Type

3-Axis Refrigerated Semi-Trailer

3-axis refrigerated semi-trailer have many advantages, including:

Temperature Control: These trailers are equipped with state-of-the-art refrigeration systems, offering precise temperature control, which is essential for maintaining the integrity of transported goods.

Extended Range: The refrigeration units in these trailers allow for the long-distance transport of perishable goods without compromising quality, especially important for international or cross-country logistics.

Versatility: 3-axis refrigerated semi-trailers can carry a wide variety of products, from frozen goods to fresh produce, making them ideal for different types of shipment demands.

Improved Safety: With advanced insulation technologies, these trailers minimize the risk of temperature fluctuations, ensuring that perishable items remain safe and intact.

Reduced Spoilage: Companies using reefer trailers experience less spoilage, which directly contributes to cost savings and improved customer satisfaction.

Environmental Efficiency: Many modern models come equipped with eco-friendly refrigeration units, reducing the carbon footprint of transporting services.

Increased Profit Margin: By preserving the quality of goods, companies can reduce losses due to spoiled products, enhancing overall profitability.

Curtain Side Semi Trailer

Curtain side semi trailer have many advantages, including:

Speedy load and unload. Once the curtains are pulled back, the trailer can be accessed from both sides as well as the rear door by multiple forklifts simultaneously. Drivers are in and out and back on the road quickly.

Simplified partial deliveries. The limitations of “first on/last off” loading are a thing of the past. Independent access to all parts of a load at any point along a route means multiple drop loads are easily doable from a single trailer.

No tarp required. While federal regulations require cargo inside curtainsides to be tied down, most loads can be quickly and conveniently secured with straps. Drivers devote time to driving, not struggling with a tarp, and experience a safer work environment as well.

Logistics

We will help you to choose the best shipping way according to your detail requirements. By sea, by air, or by express, etc.

The time frame of an order delivery is divided into two parts:

Processing time: 7-14 Days

Shipping time: 20~30 Days

Shipping methods:

DDP, DAP, EXW, etc.

Shipping fee:

The shipping fee will be changed according to every pacel's weight.

FAQ

Q: What happens if a reefer runs out of fuel?

A: If you run out of fuel for the reefer, you run out of cold, so to speak – a problem that can put cargo at risk. Additionally, restarting the refrigeration unit may be problematic, because when the tank runs dry the engine can lose its prime. That can force a costly service callout.

Q: What temperature should a refrigerated trailer be set at before loading?

A: Transport refrigeration units are designed to maintain the temperature of the load, not to change it. Therefore, refrigerated cargo should be at its preferred temperature when it's loaded into the trailer. In short, if the cargo should be transported at 34° F, it should be cooled to 34° F prior to loading.

Q: How long can a refrigerated trailer run?

A: Reefer Trailers typically can run for two days without a refuel if opened only once or twice a day. Three days if you go a weekend without opening the trailer if fueled on Friday. If you have staff leaving the door open regularly expect to need fuel daily.

Q: How do refrigerated semi trailers work?

A: How Do Reefer Trailers Work? A reefer semi-truck typically includes a specialized trailer with insulation and a powerful refrigeration unit. Cold air circulates through the interior of the trailer, while thick walls and sealed doors help maintain consistent temperatures.

Q: What is the difference between a curtain side and a tautliner?

A: Just like curtain siders, Tautliners are a type of truck or trailer that uses reinforced and high-tensile fabric.

As one of the leading box type manufacturers in China, we warmly welcome you to buy high quality box type from our factory. Good service and punctual delivery are available.
