Product Introduction

Products Description

product-1950-1097

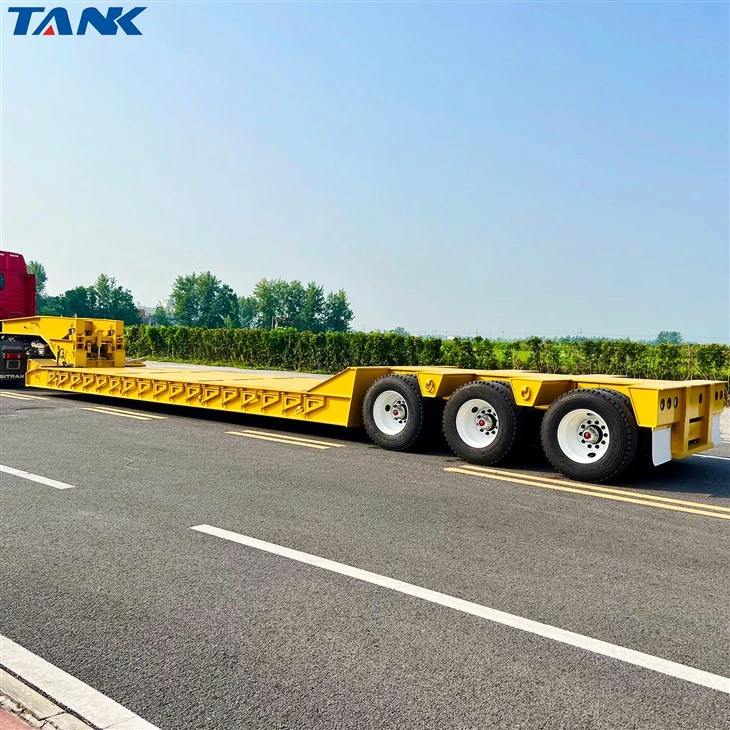

3 Axle Hydraulic Gooseneck Lowbed Semi-trailer

The 3 axle hydraulic gooseneck lowbed semi-trailer is a specialized transport vehicle designed for carrying overweight, oversized, ultra-wide, or non-disassembled large cargo. It is widely used in fields such as construction machinery, wind power equipment, large vehicles, and industrial equipment. Its core features combine a low-flatbed design, hydraulic lifting system, and multi-axle load-bearing structure, enabling it to meet complex transportation demands.

product-1620-912

3 Axle Hydraulic Gooseneck Lowbed Semi-trailer

Equipped with three sets of axles (typically single or dual tire configurations), with a total load capacity ranging from 40 to 100 tons (depending on axle type and configuration).

The three-axle layout distributes load pressure, enhances stability and road adaptability, and complies with national road transport regulations.

#Technical Specifications#

Brand	TANK
Model	TANK 3 axle lowbed semi-trailer
Origin	China
Dimension
Length	External total length:17600mm
Width	External Body Width:2500mm(extend to 3000mm)
Height	External Body Height:1800mm(approx)
Wheel base	1-2 axle:1310 mm ;2-3 axle:1310 mm;
Tare Mass	17000kgs ( ± 3 % )
Payload	80T
Suitable Truck	Type: 4x2 and 6x4
Structure
Chassis	Top flange 20mm ,middle flange 8+8mm, bottom flange 20mm
Axle	Standard 16T*4pcs
Suspension	Mechanical suspension with 10pcs16mm100mm
Ladder	Without
Gooseneck	Hydraulic detachable gooseneck, including hydraulic system
Floor Thickness	4mm checkered plate+5mm wood floor
Tire	12R22.5 China brand 16pcs
Wheel rim	9.0-22.5 China brand 16pcs
Kingpin	JOST 3.5" bolt-in king pin
Landing gear	Without
Brake System	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	WABCO ABS
Color	Optional
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	complete chassis sand blasting to clean rust ,1coat of anti corrosive prime,2coats of final paint.
Accessories	one shaft head wrench,four side light,two rear light
Package and delivery	Nude with wax spray

product Details

From detail to quality, we give you a comfortable and safe driving experience

Ultra-low plate height

Extremely low platform height (typically 30–50 cm above ground), facilitating the loading of ultra-tall cargo (e.g., excavators, transformers).

Hydraulic Gooseneck

The gooseneck is hydraulic detachable gooseneck ,it's critical component of semi-trailer towing systems, utilizing a hydraulic mechanism toadjust height or angle.

Axles and suspension

The axles are from well-known brands such as BPW, ensuring quality. The suspension system can be either air suspension or mechanical suspension. Customers can specify the brand.

Power diesel engine

The drive hydraulic pump converts mechanical energy into hydraulic energy, thereby providing high-pressure oil flow for the hydraulic system. Its features include high torque output, strong environmental adaptability, and stable long-term operation capability.
