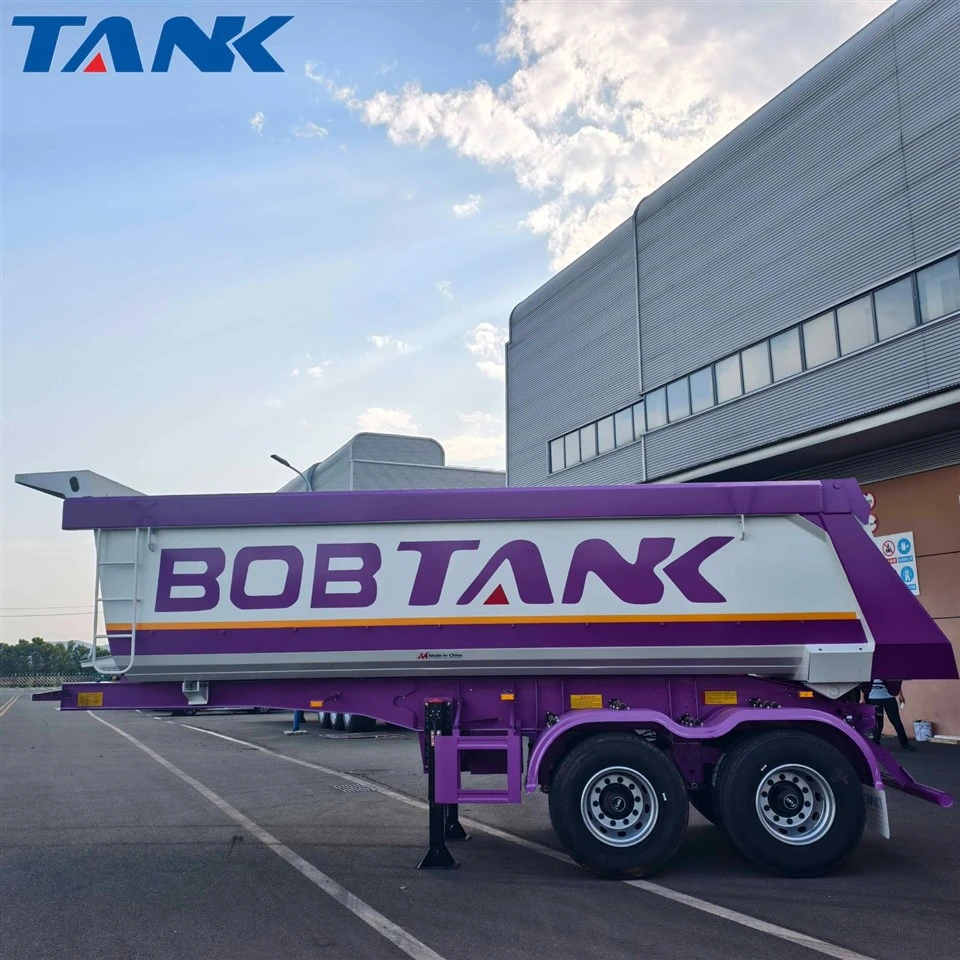

2-Axle U-Type Rear-Tipping Dump Semi-Trailer (3)
2-Axle U-Type Rear-Tipping Dump Semi-Trailer (5)

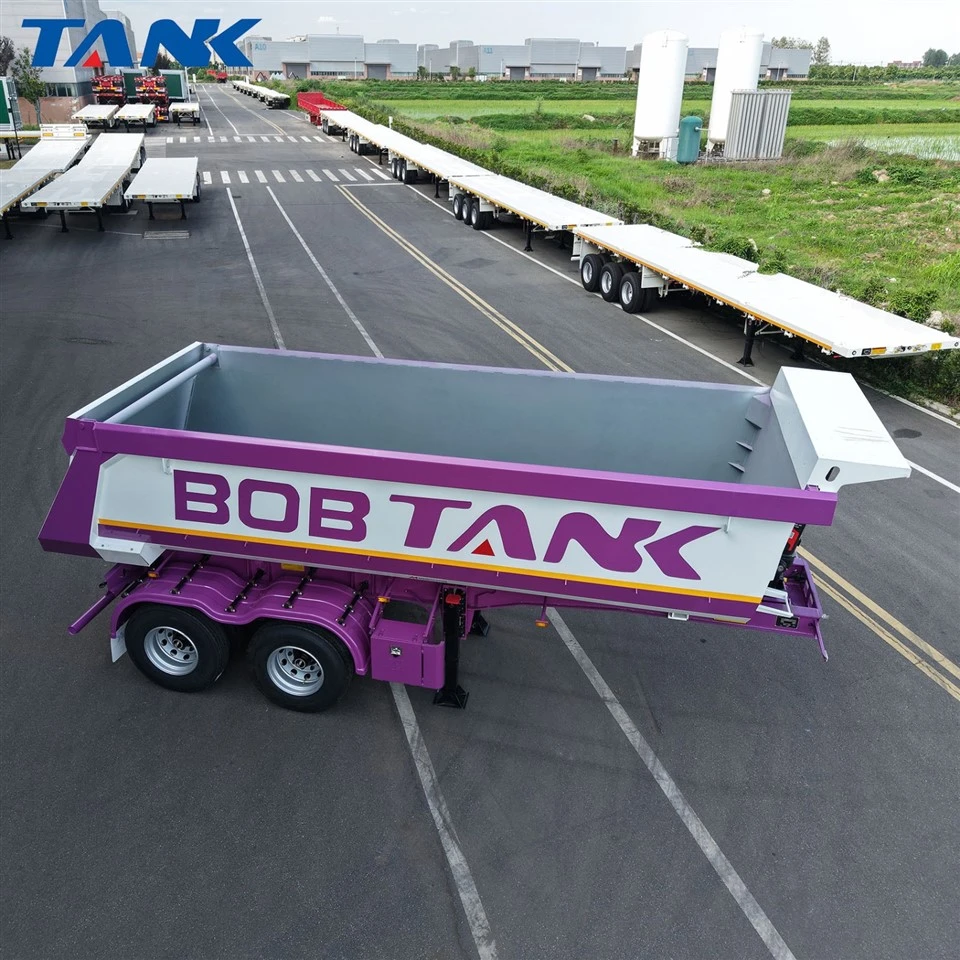

2-Axle U-Type Rear-Tipping Dump Semi-Trailer (10)
2-Axle U-Type Rear-Tipping Dump Semi-Trailer (11)
2-Axle U-Type Rear-Tipping Dump Semi-Trailer (12)

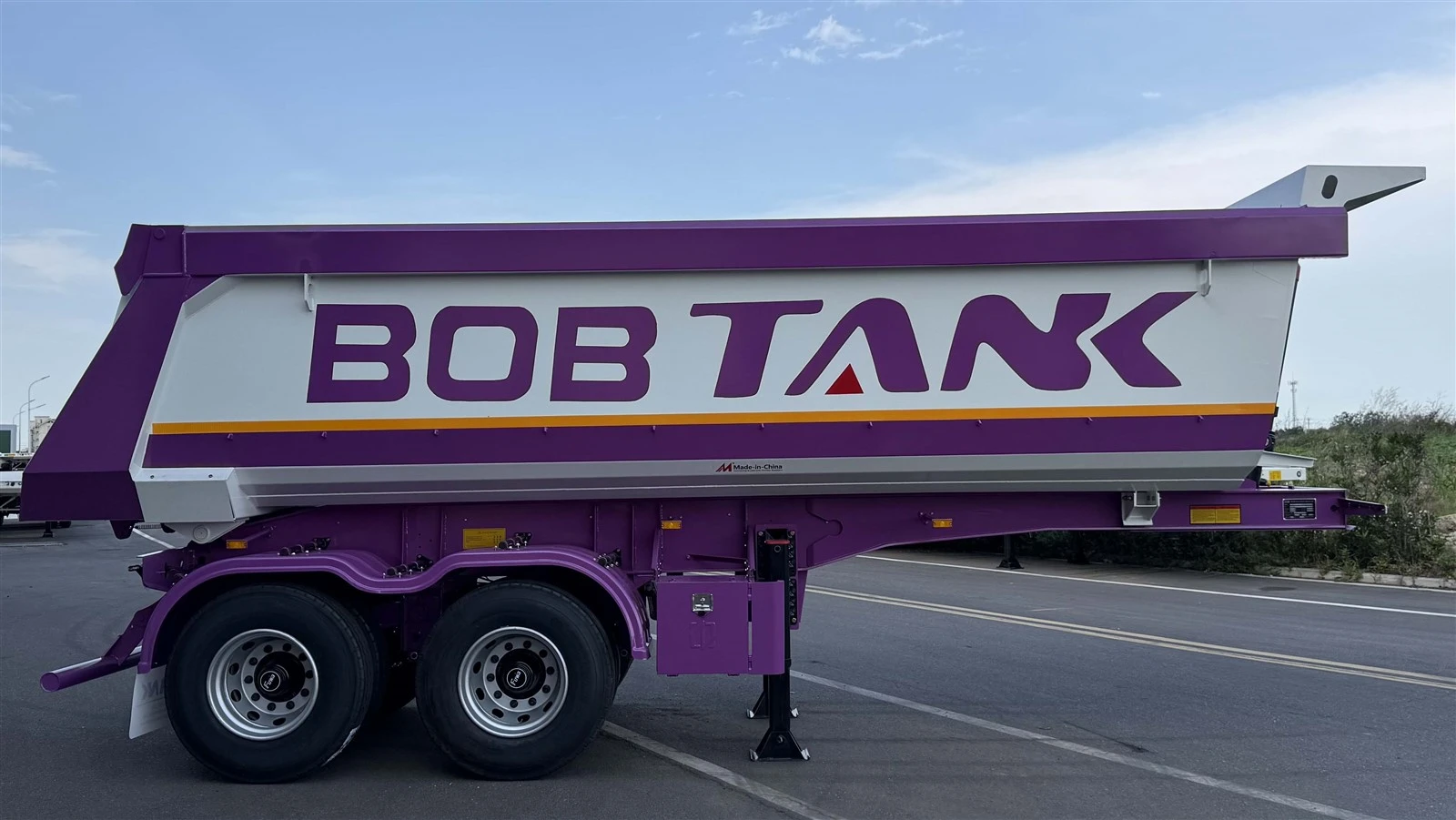

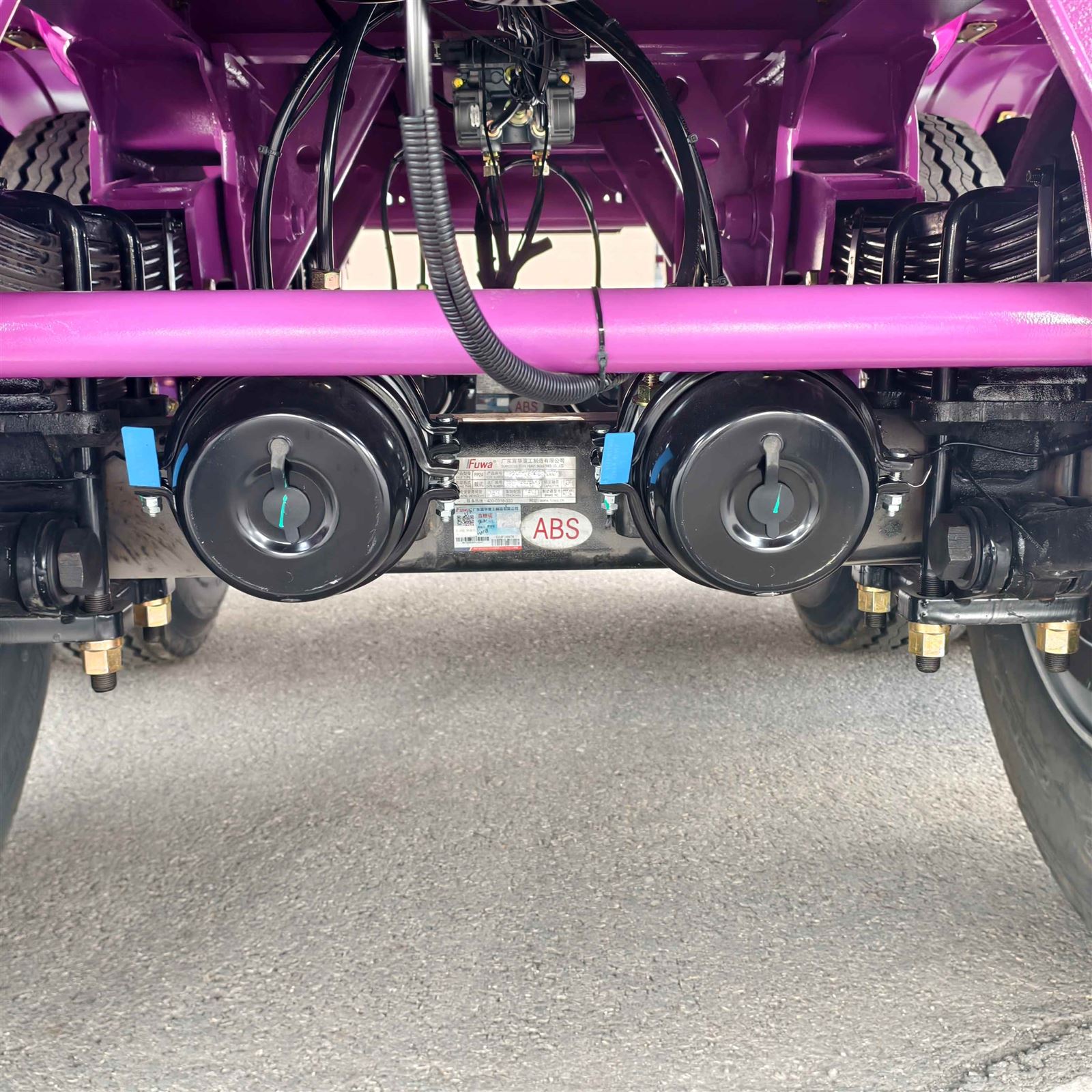

2 Axle U Type Rear Dumper Semi Trailer

This is a two-axis U-shaped rear-opening dump semi-trailer specially customized for the customers of Barbados.
Total length: 8 meters
Maximum capacity: 22 cubic meters
Axles: FUWA 13T
Landing legs: JOST 28T
ABS braking system: WABCO brand For detailed specifications

Send Inquiry

Product Introduction

Products Description

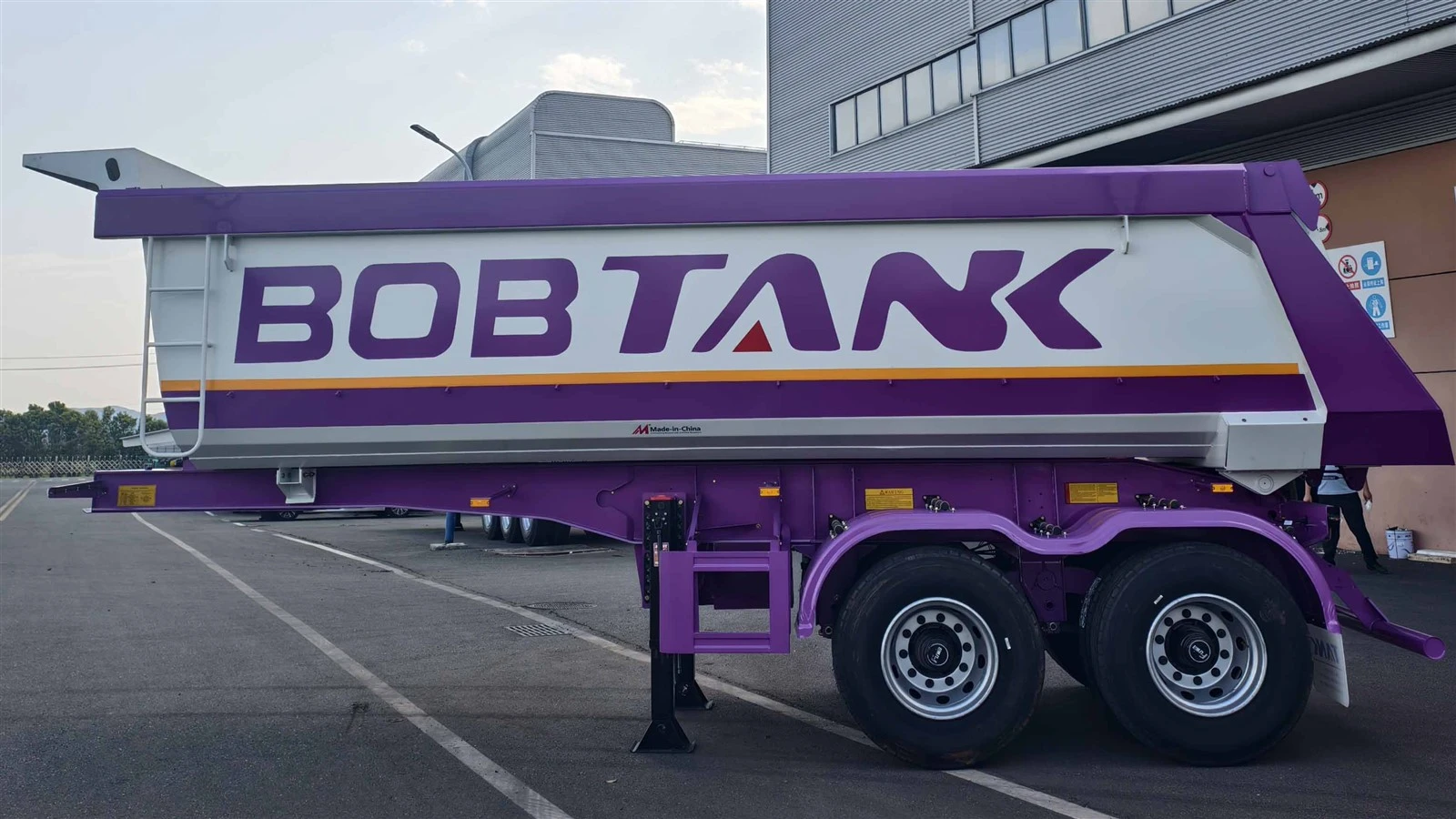

2-Axle U-Type Rear-Tipping Dump Semi-Trailer 3

The 2 Axle U type Rear Dumper Semi Trailer

This 2-axle U type rear dumper semi-trailer features a rigorous production process and meticulous attention to detail in every aspect. From components to technology, every element embodies precision and excellence. For specific configurations, please refer to the product details.

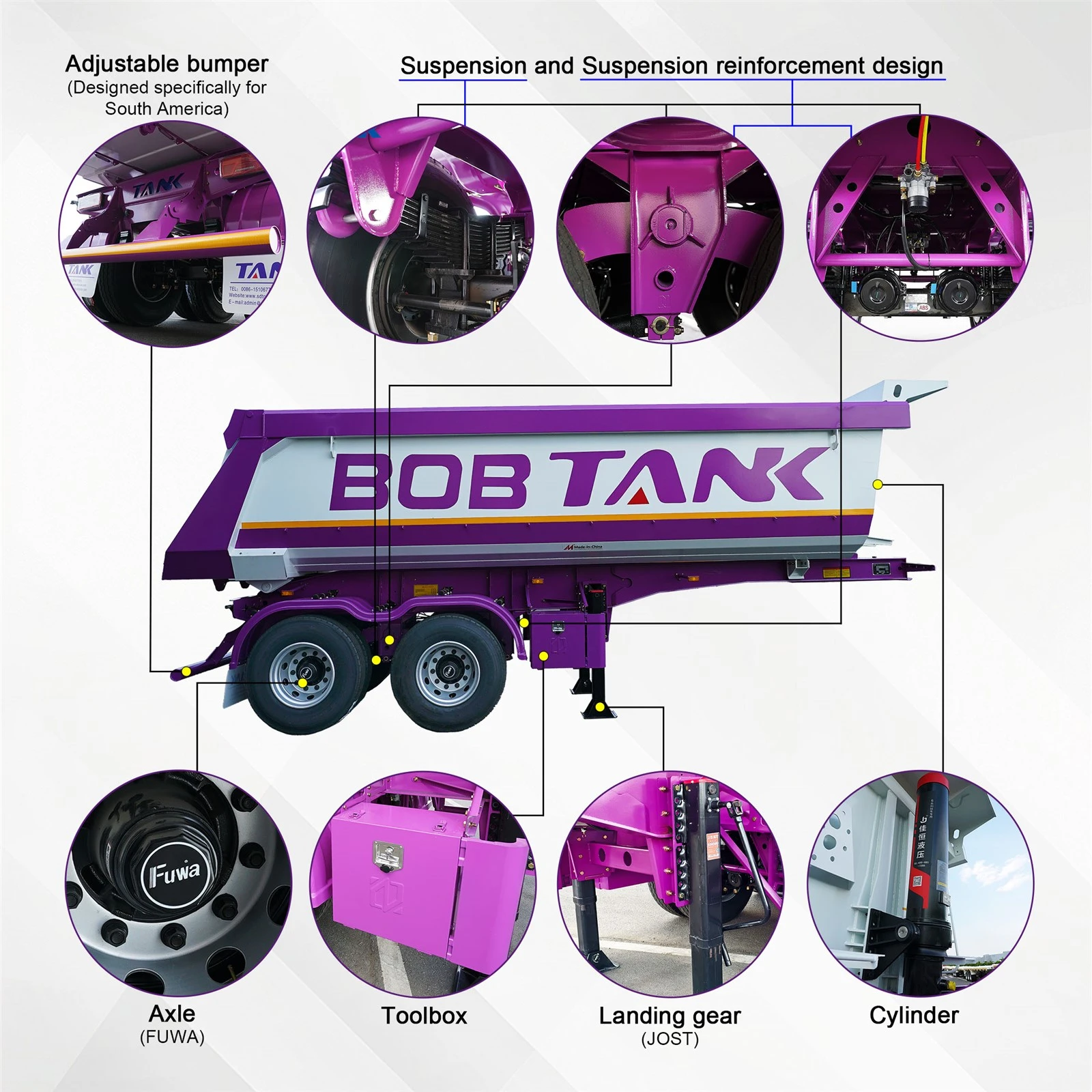

product-2200-2200

Parameter Configuration ：

Size	8000mm2500mm3370mm
Payload	30-80T
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 18mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm
Floor	8mm checkered plate (Optional)
Side wall	Height 1600mm thickness 6mm (Optional)
Cylinder	Jiaheng (Optional)
Axle	2 axle FUWA brand 13T (Optional)
Suspension	Mechanical suspension American type (Optional)
Leaf spring	Leaf spring 10pcs9013mm (Optional)
Tire	12R22.5 12pcs (Brand and specs optional)
Wheel rim	9.0-22.5 12pcs (Brand and specs optional)
Kingpin	JOST 90# -12
Landing gear	Two-speed, The JOST AC300 28T
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	WABOC ABS 4S2M
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint

Products Details

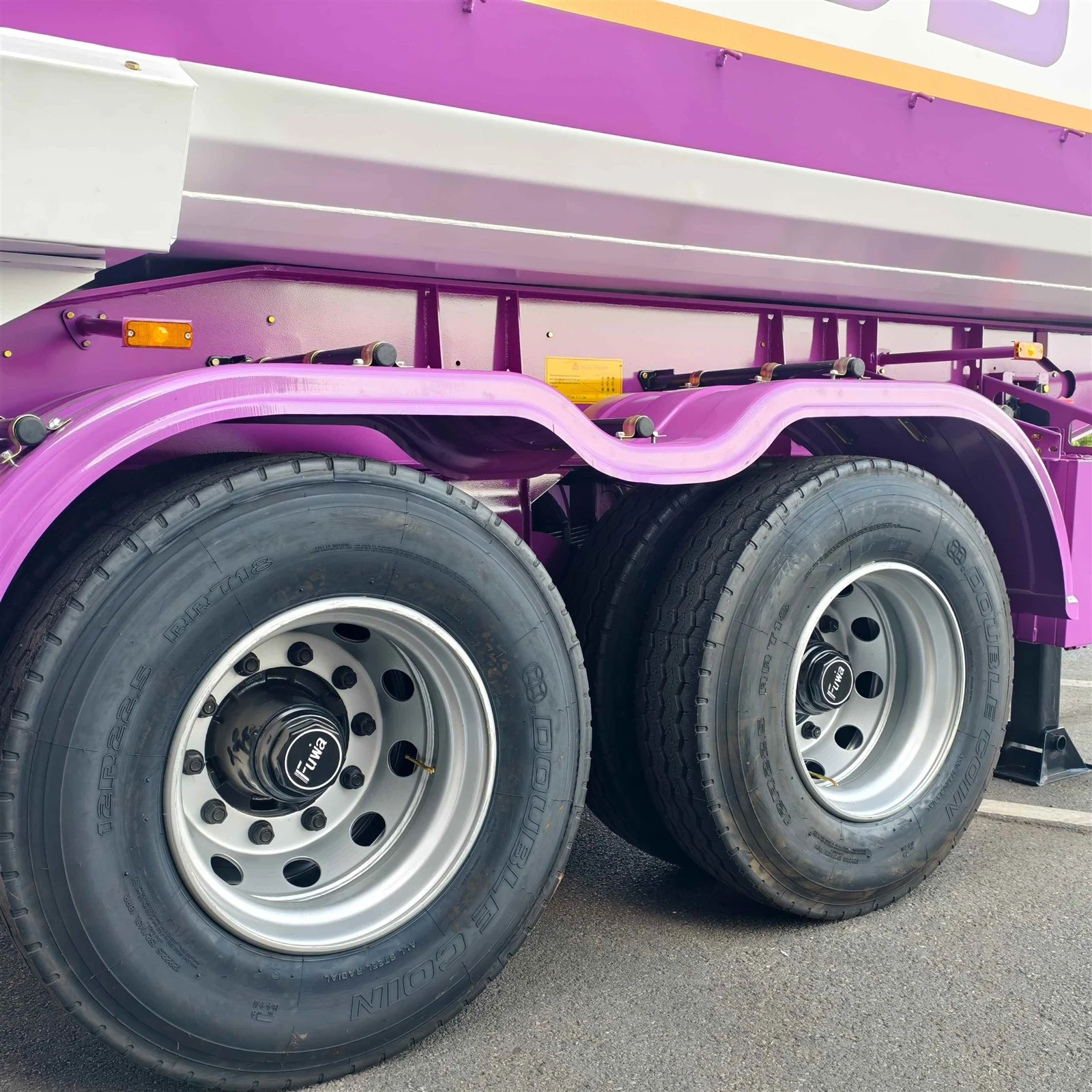

Fuwa Axle

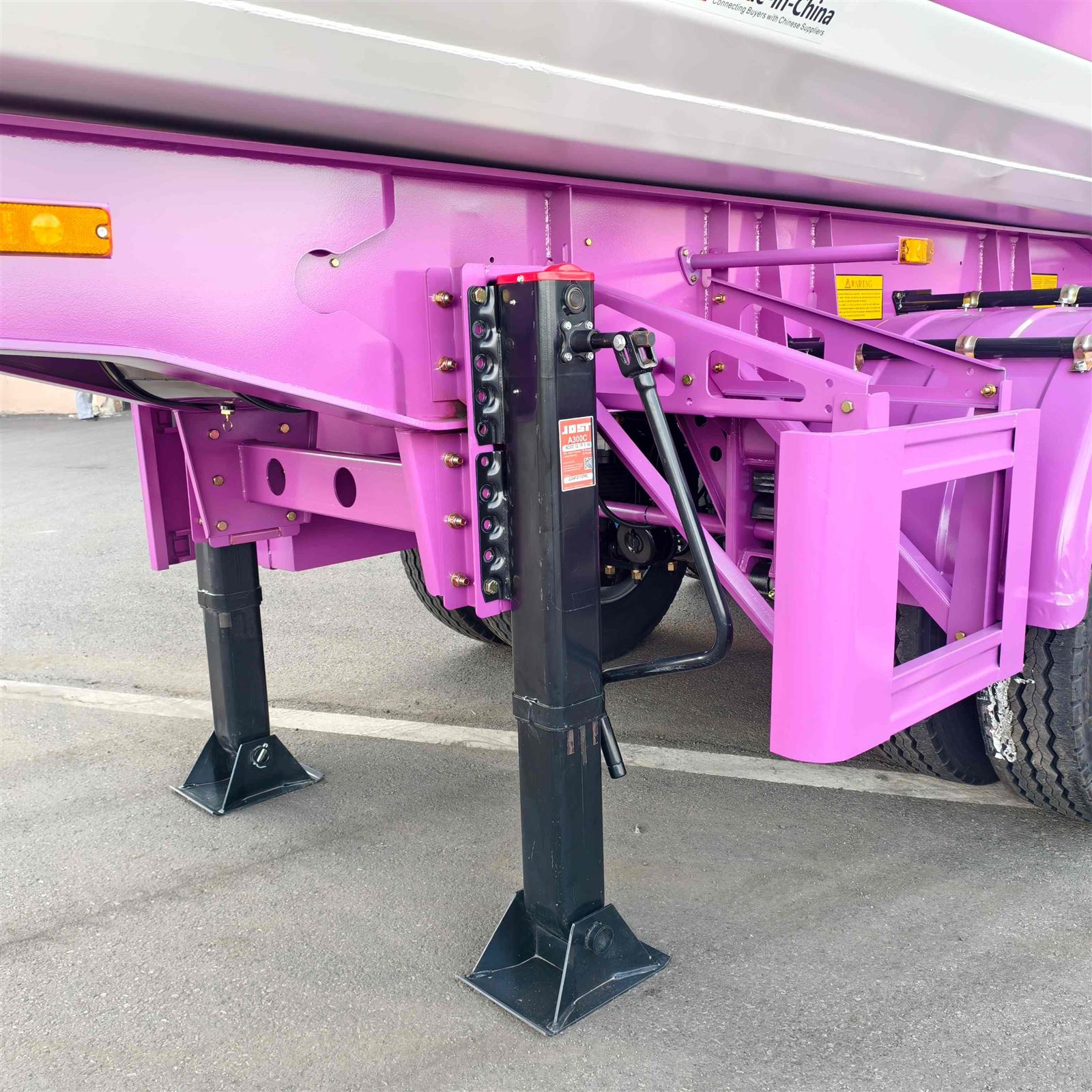

2 axle U type rear-tipping dump semi trailer

Jost Landing Gear

WABOC ABS System

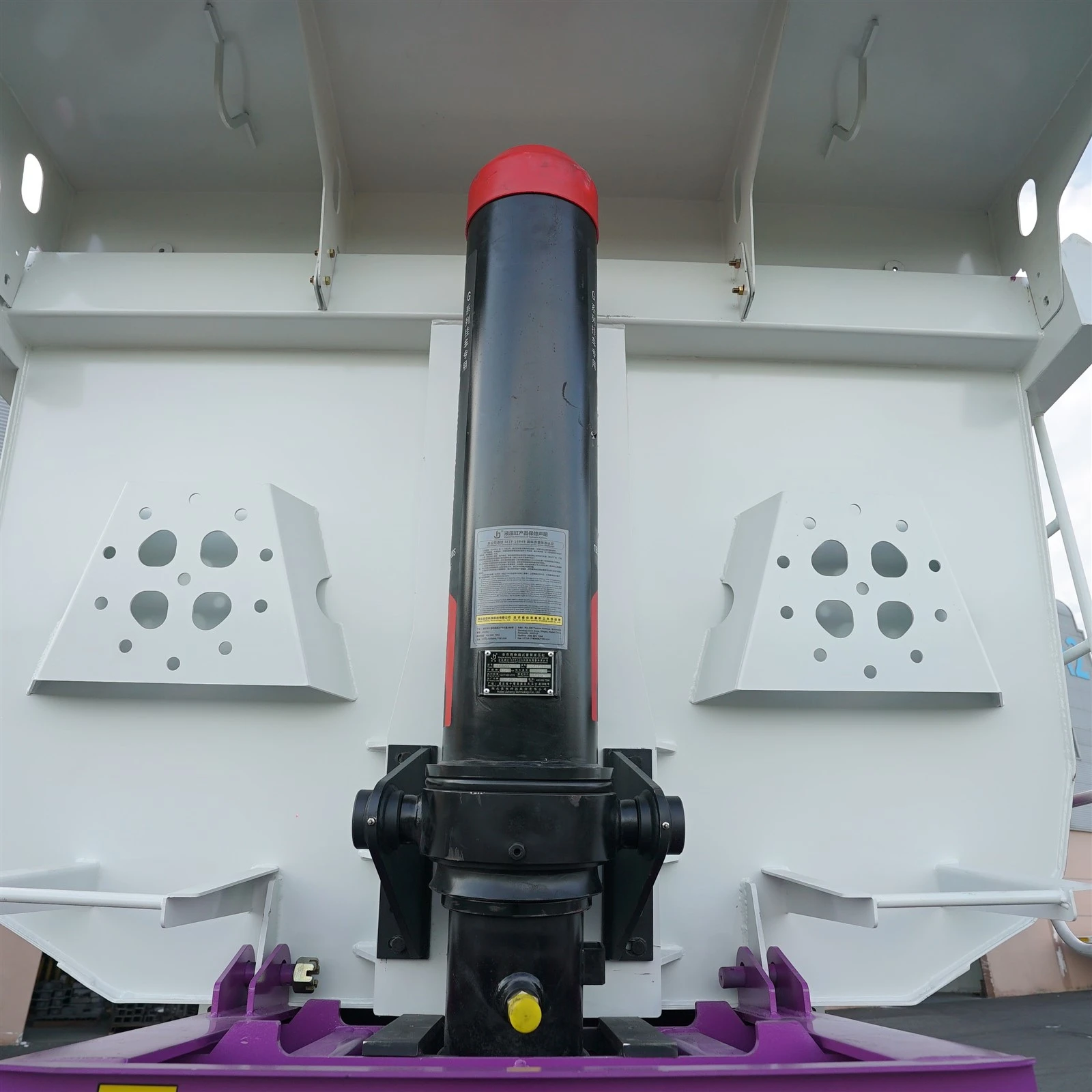

JiaHeng Hydro-cylinder

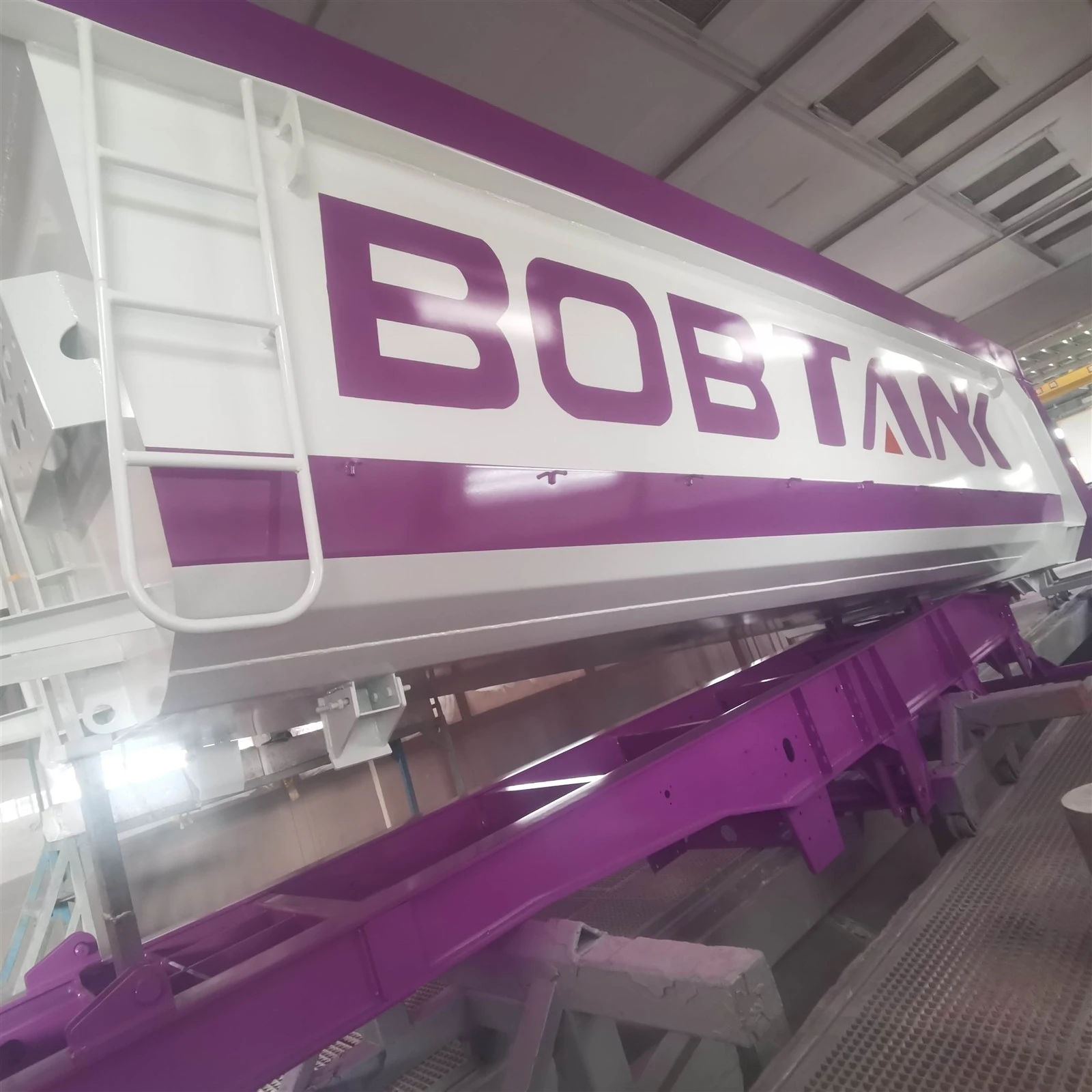

Precise craftsmanship exquisite details

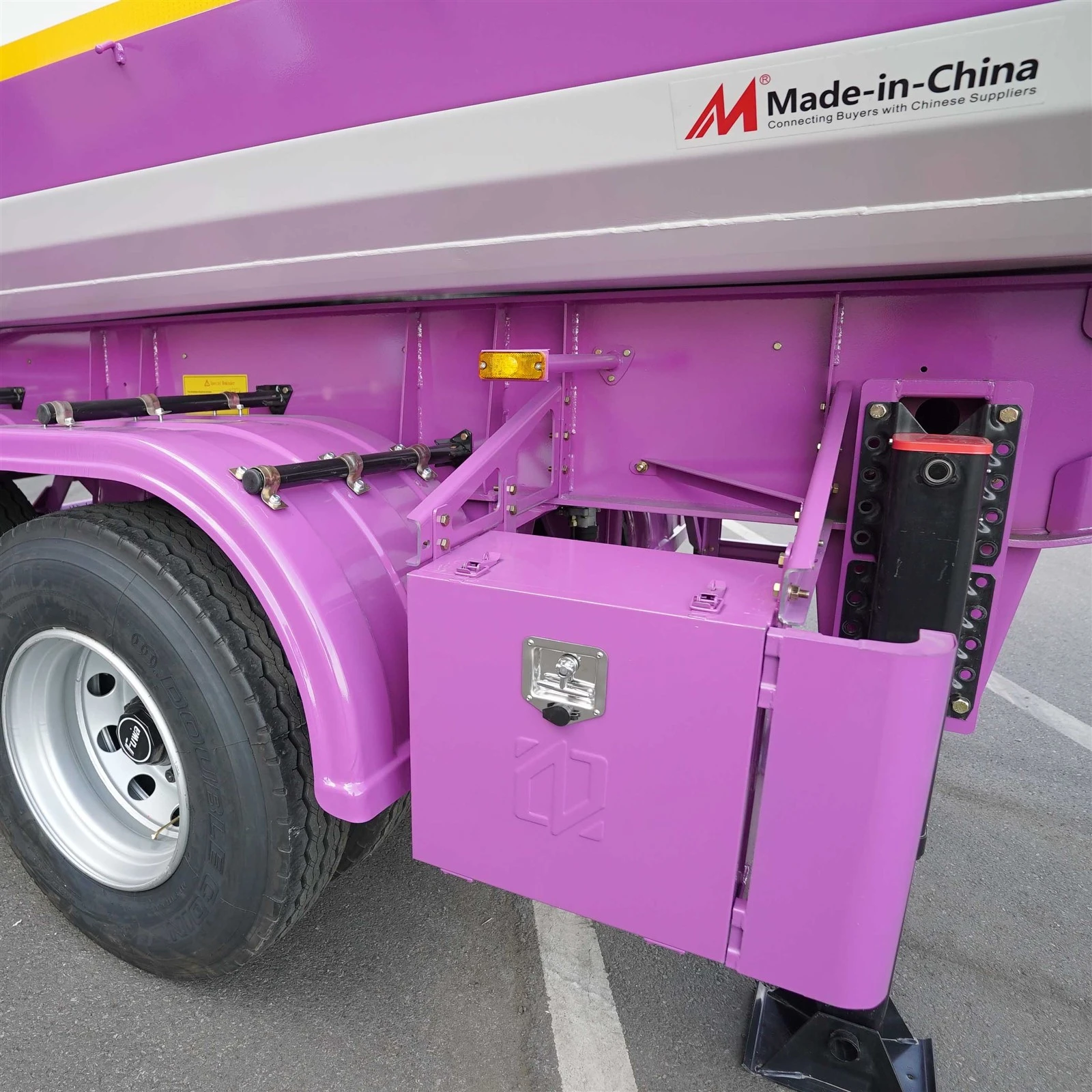

Steel fully sealed 0.5 meters tool box

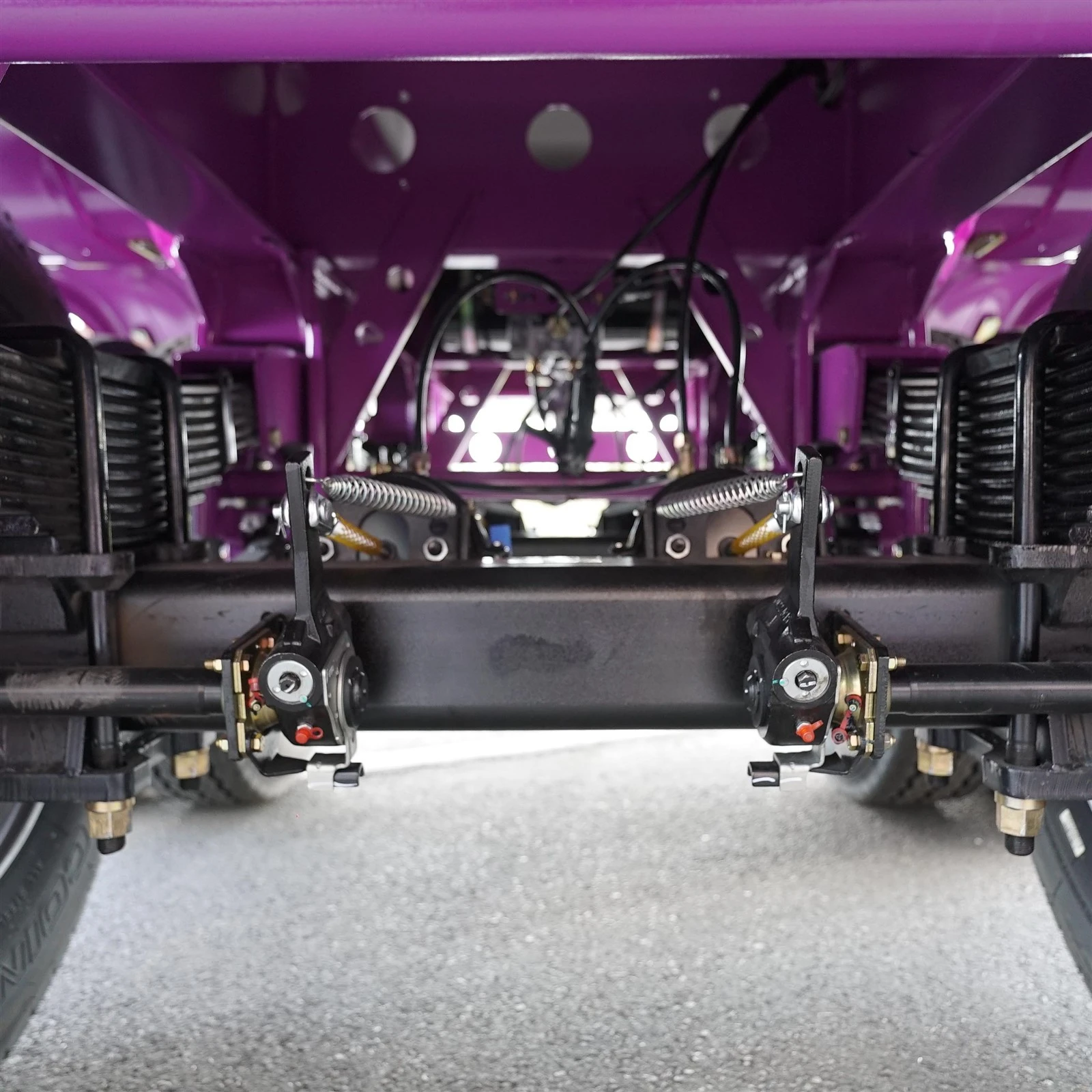

Suspension steel plate leaf spring suspension

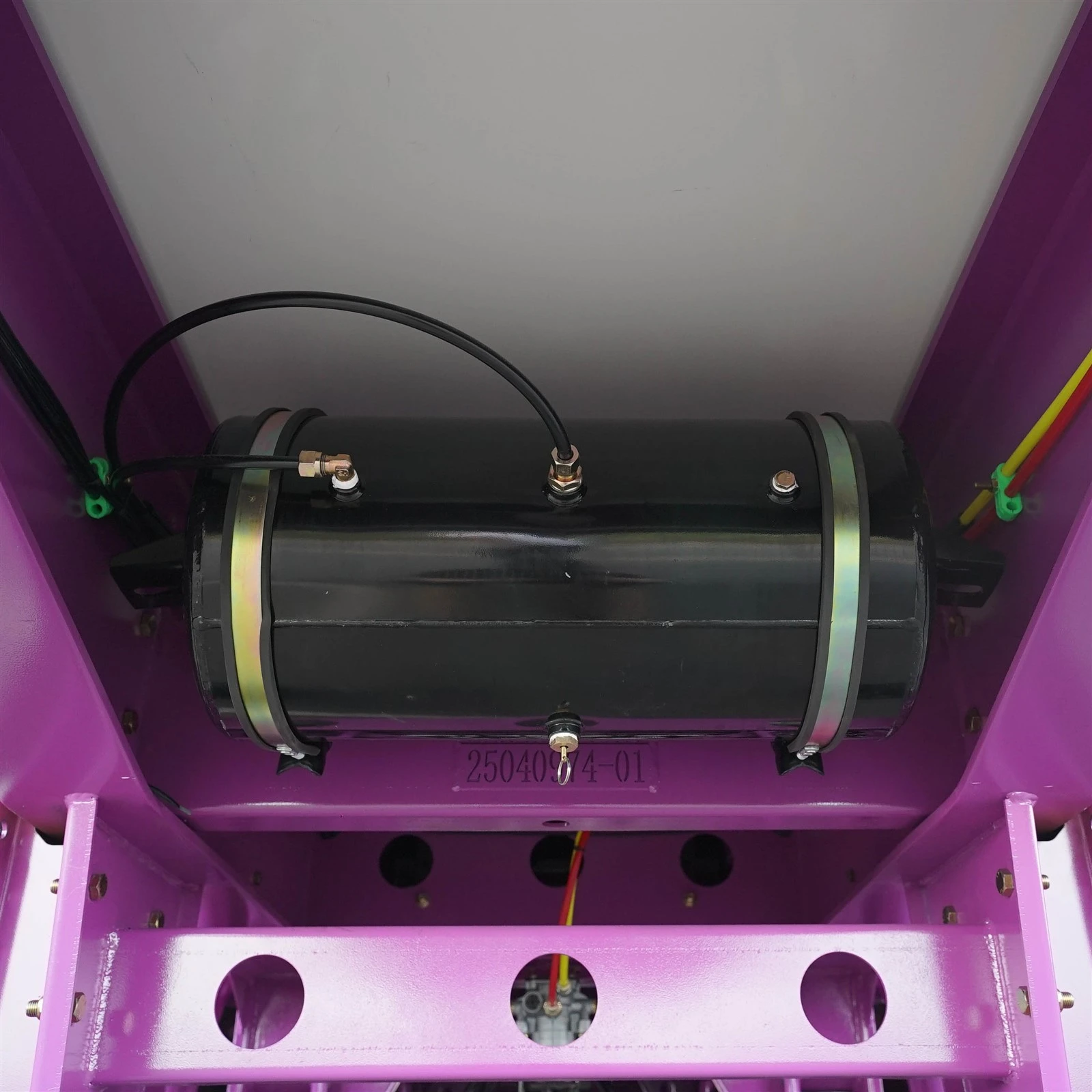

Pneumatic brake air reservoir

production proces

Step 1

Welding

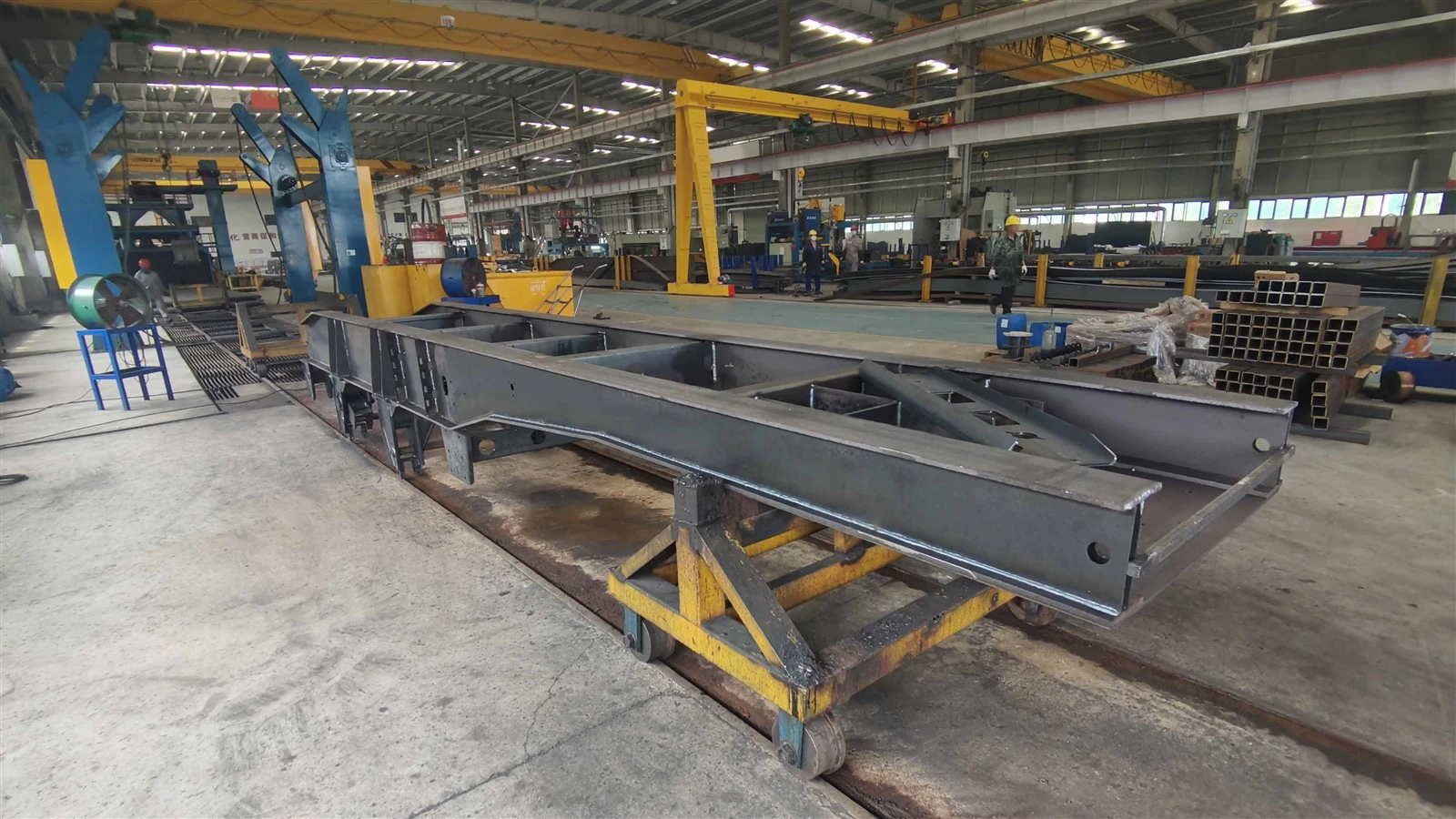

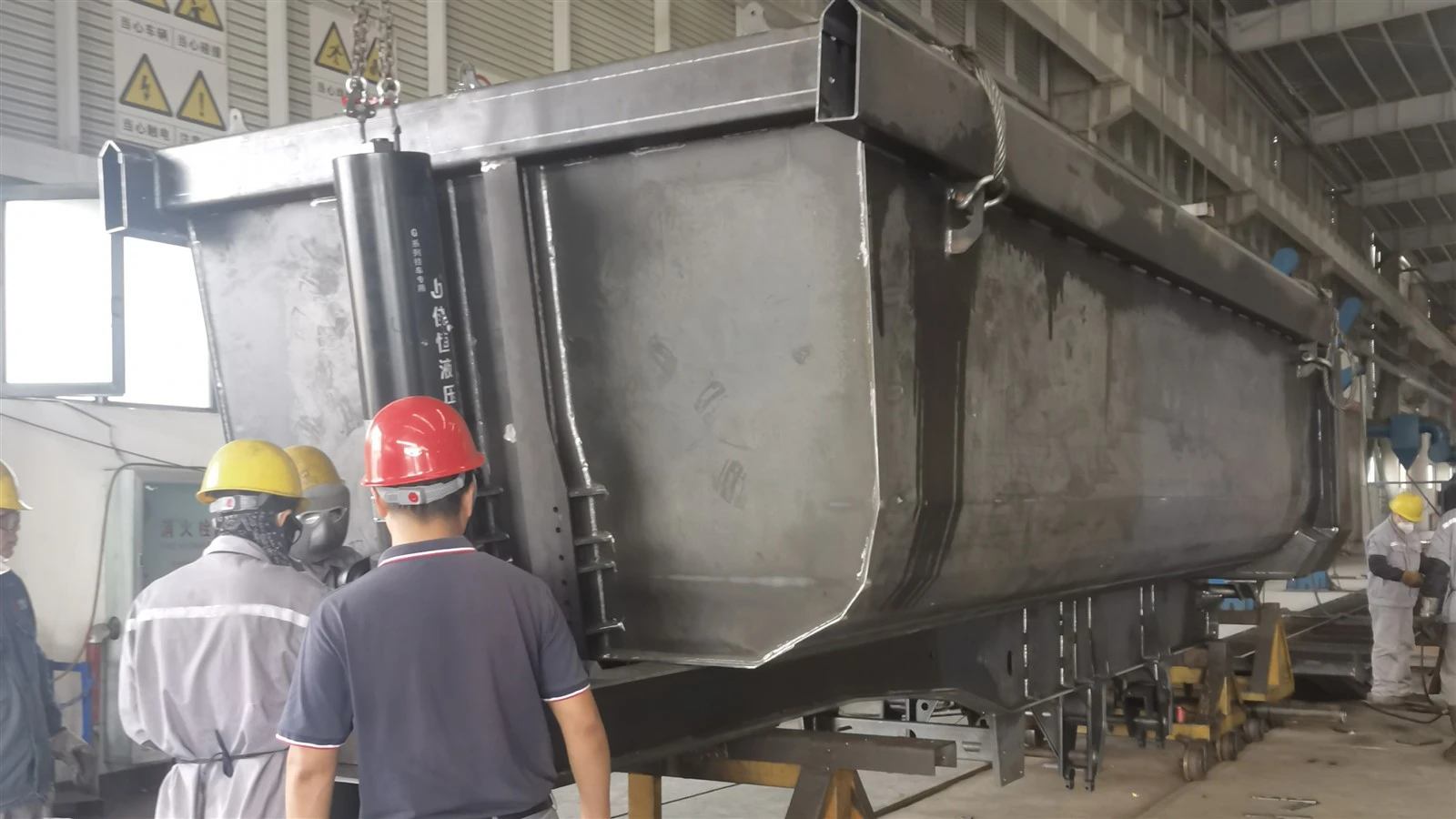

Welding the main beams and container components

step 2

Assemble

Assemble the welded box components and complete the installation with the main beam.

Step 3

Welding

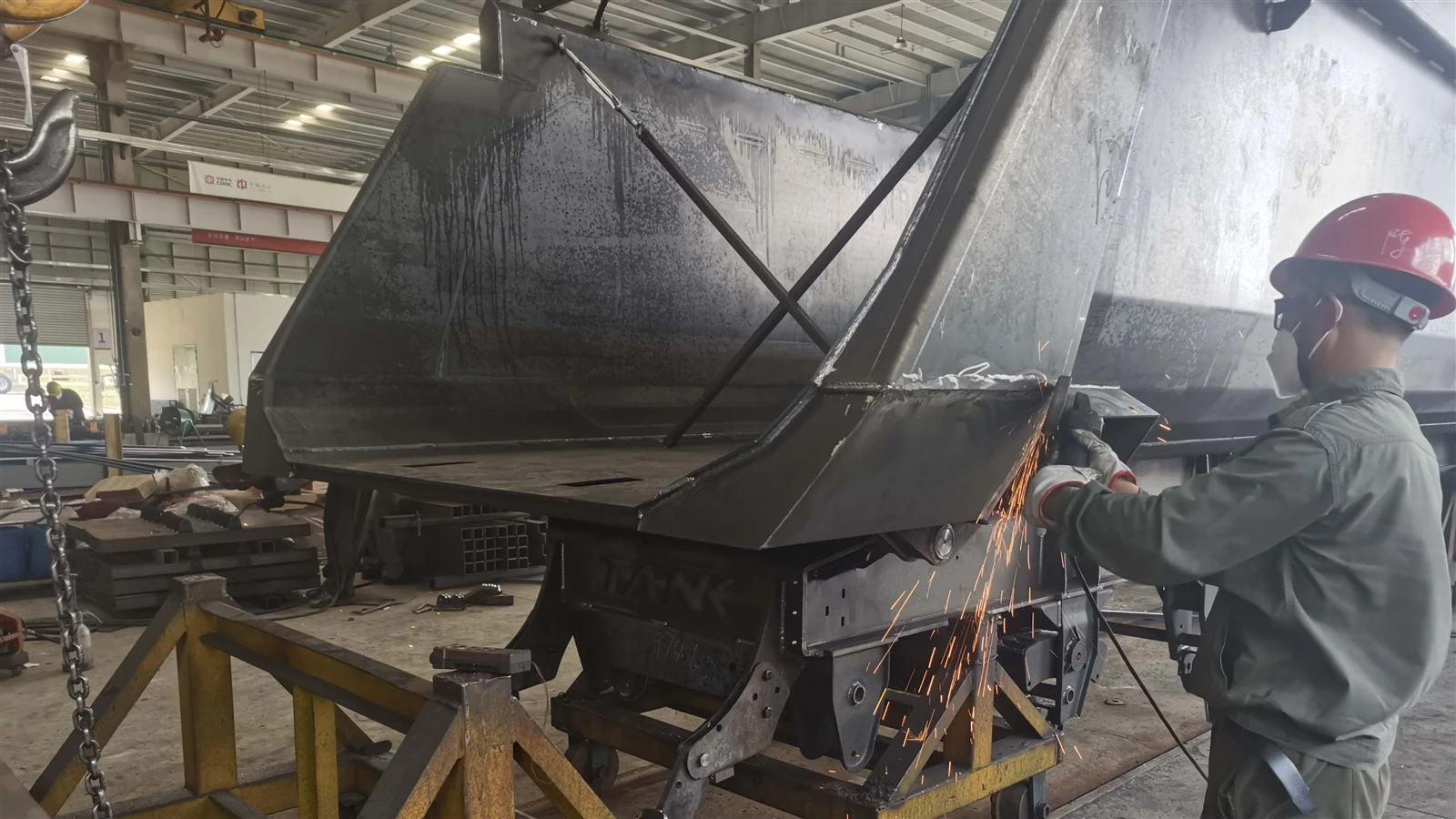

Welding the container body, assembling hydraulic rods, and grinding weld seams ensure a smoother and more even surface, resulting in a better painting finish.

Step 4

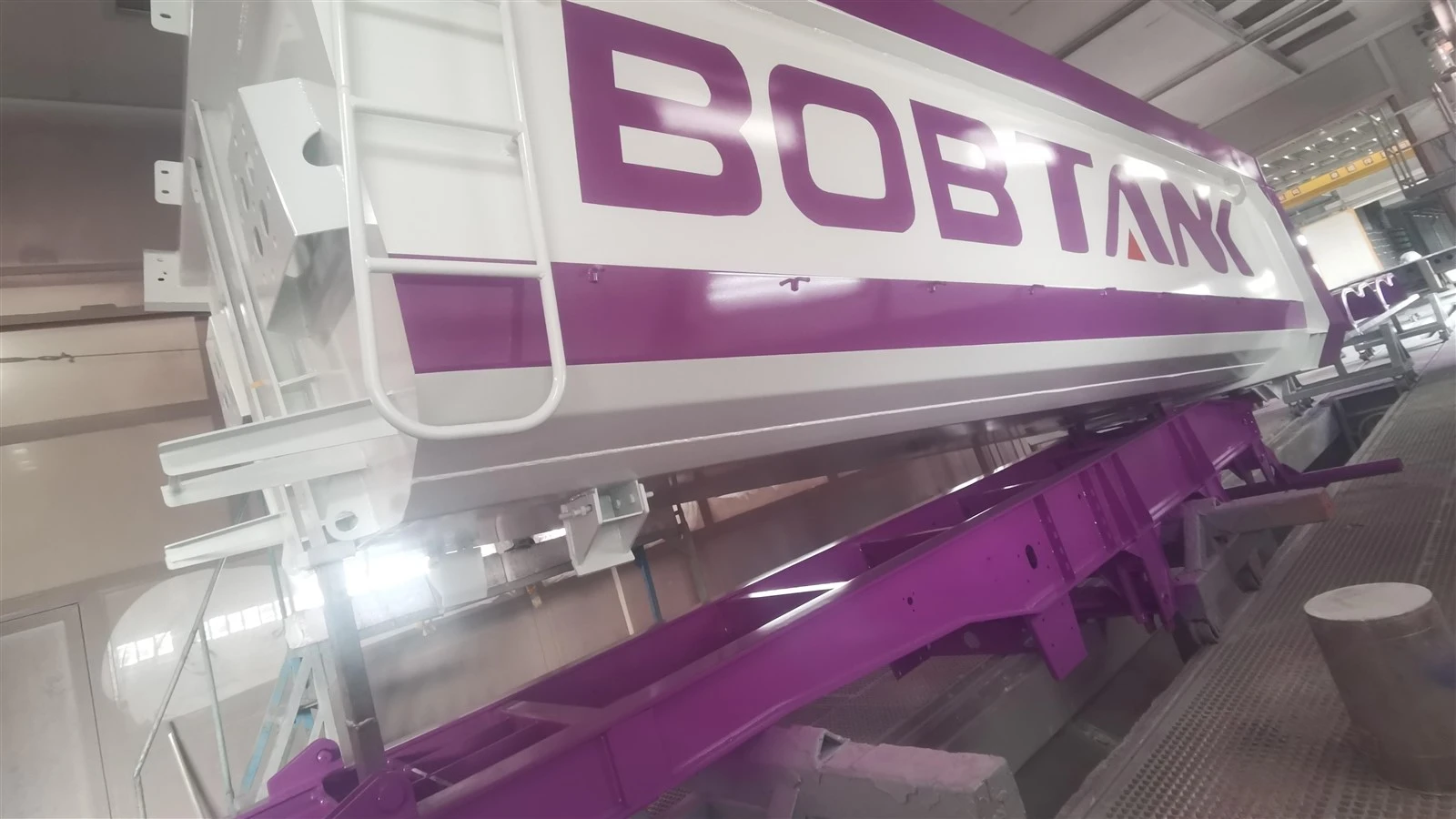

Spray Lacquer
After the complete chassis assembly, the entire vehicle undergoes painting treatment.

Step 5

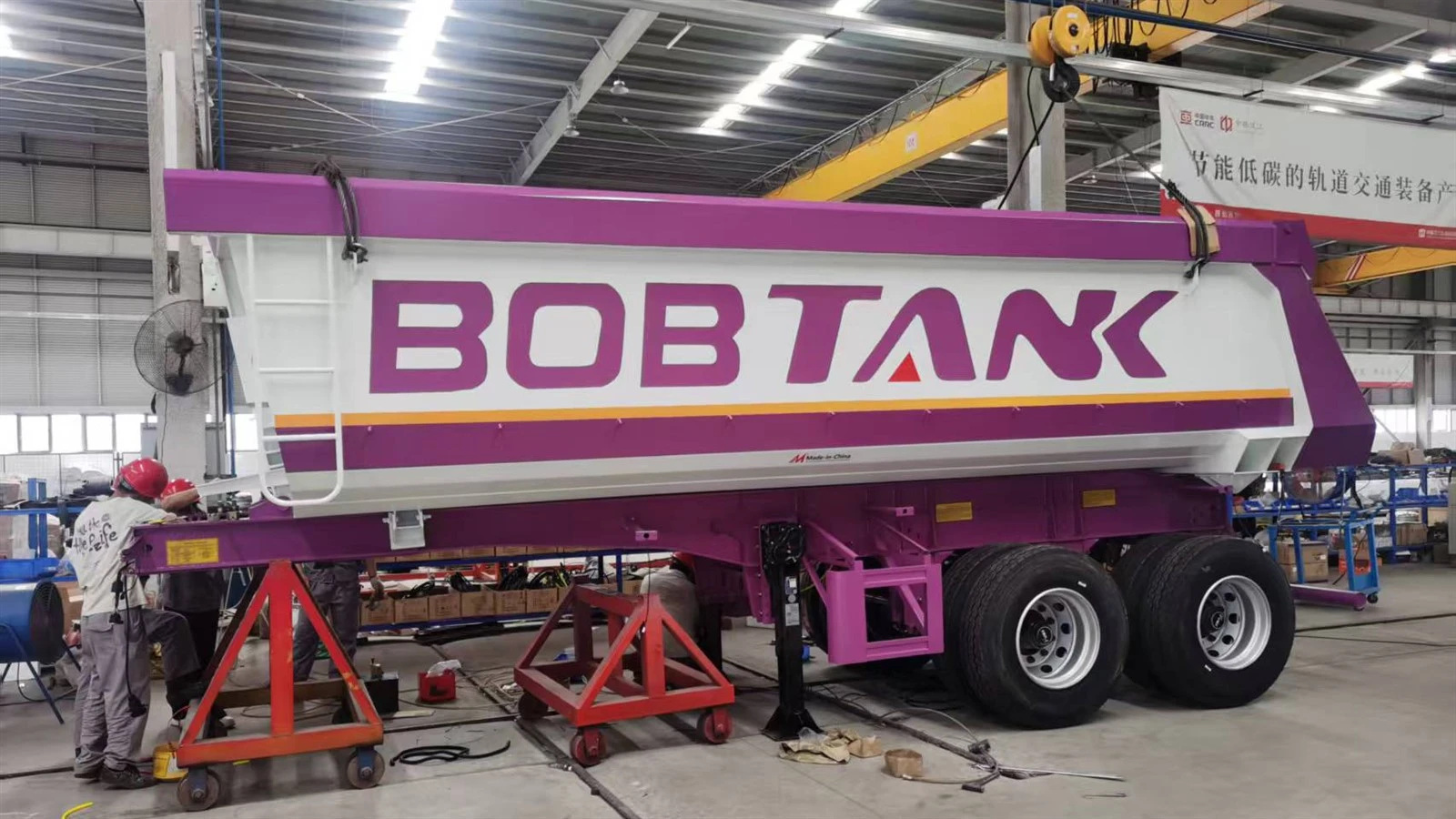

Install
After the paint has fully cured, the installation of vehicle components begins-including axles, tires, landing legs, and electrical/pneumatic systems. Once assembly is complete, the finished vehicle undergoes final factory inspection before delivery.

Step 6

Factory Acceptance

Prior to delivery, the vehicle must undergo comprehensive performance and electro-pneumatic system testing. Shipment is authorized only after successful acceptance inspection.
