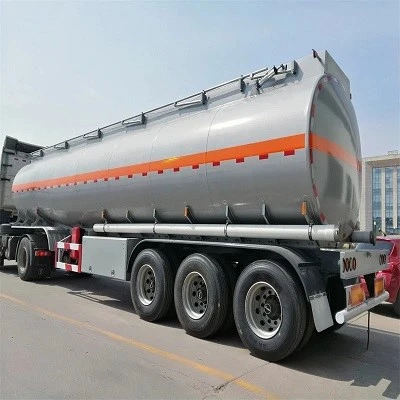

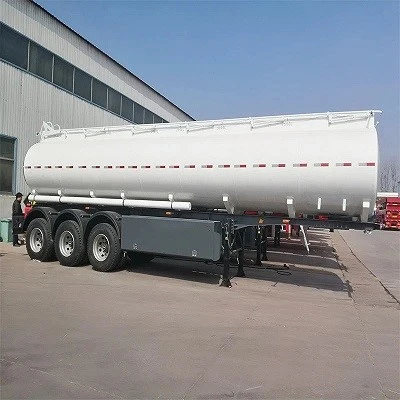

Oil Tank Semi Trailer
Shandong tank automobile company limited is a professional semi trailer and trailer parts exporter. Our company have our own semi trailer and trailer parts factory. Our factory covering an area of 200000 square meters, and over 130 employees.
At present, the company mainly specializing in manufacturing special vehicles such as low bed semi trailer, flatbed semi trailer, oil tank semi trailer, bulk cement semi trailer, dumper semi trailer and so on. And our trailer parts factory mainly manufacture semi trailer axle, suspension and landing gear.
Quality Assurance
Our boasts strong technical force, advanced line production equipment of welding and excellent quality guarantee system, modern testing means and high qualified specialist technicians, making the products trusted and welcomed widely by the users.
Our Service
Pre sales: We can support professional technical. We have experienced technicians who design the most reasonable trailers for our customers
In sale: Track trailer production progress and share real-time product status with customers in a timely manner.
After sales: Equipped with various vulnerable parts, track the usage of customer vehicles, and promptly solve problems found.
Affordable
We have a professional purchasing team and costing team, trying to reduce costs and profits, and provide you with a good price.
Types of Oil Tank Semi Trailer
The oil tank semi trailer produced by our company mainly include the following types:
Edible Oil Tanker Semi Trailer
Edible oil tanker semi trailer is one of tanker semi trailer which specifically designed for transporting liquid food, mainly used for transporting edible oils such as peanut oil, rapeseed oil, soybean oil, blended oil, etc. This type of tanker semi trailer has the characteristics of good sealing performance, safety, and stability.
Carbon Steel Tanker Trailer
The tank body of carbon steel tanker trailer is made of high-quality 4mm or 6mm carbon steel produced by Wuhan Iron and Steel Company and manufactured according to national standards. The shape is divided into elliptical or square circular tanks, which can hold 1-4 types of oil products. We can also produce heating and insulation series tanks.
Stainless Steel Tanker Trailer
The tank body of stainless steel tanker semi trailer is made of The tank body is made of food grade 304 or 316 stainless steel material, suitable for transporting edible oil, milk, etc. Diesel tank semi trailer is one of most important type.
Aluminum Alloy Tanker Semi Trailer
The tank body of aluminum alloy tanker semi trailer is made of high-quality aluminum alloy sheet according to national standards. The actual volume of the tank body is about 43 cubic meters, and the thickness is strictly made according to the national standard GB18564-1 (tank body 6MM, head 7MM, partition 5MM).
Specification
|
Size |
10500mm*2500mm*3700mm |
|
Volume |
30-60m³ |
|
Tank body |
304/4mm steel sheet (Stainless steel/aluminium alloy optional) |
|
End plate |
304/6mm .ball shape (Stainless steel/aluminium alloy optional) |
|
Axle |
3 axle 13T (Optional) |
|
Suspension |
Mechanical suspension American type (Optional) |
|
Leaf spring |
Leaf spring 10pcs*90*13mm (Optional) |
|
Manhole cover |
500mm manhole cover with breath valve .2 sets (Optional) |
|
Tire |
12R22.5 12pcs (Brand and specs optional) |
|
Wheel rim |
9.0-22.5 12pcs (Brand and specs optional) |
|
Discharge valve |
4"disc valve |
|
Discharge pipe |
4"seamless steel tube |
|
Bottom valve |
1 set |
|
Kingpin |
2"/3.5" bolt-in /welded king pin |
|
Landing gear |
Two-speed, manual operating ,heavy duty landing gear 28T |
|
Compartment |
Single (Optional) |
|
Braking system |
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
|
ABS |
With |
|
Light |
LED 8 side lights and 2 rear lights 2 width lamp |
|
Painting |
Complete chassis sand blasting to clean rust ,1coat of anti corrosive prime,2coats of final paint |
|
Accessories |
One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
1. High transportation efficiency
The oil tank semi trailer is a special container, which usually adopts the centralized loading and unloading method, shortening the stop time when the trailer is loading and unloading, and speeding up the vehicle turnover. At the same time, the use of tank trailer for transportation is easy to realize mechanization loading and unloading, transportation efficiency has been greatly improved. Such as using bulk cement tanker trailer to load cement can improve loading and unloading efficiency 20 times compared with ordinary truck.
2. The material is not easy to deteriorate
Because the oil tank semi trailer is basically a sealed container, the influence of the external environment and climate conditions is small, the goods can be better protected in transit, not easy to deteriorate and damage, thus ensuring the physical and chemical properties of the material is not easy to change. Tank trucks are ideal for transporting food (beverages), chemicals, or other items that need to be protected from moisture or heat.
3. Conducive to safe transportation
Ceramic or glass jars are generally used as containers when transporting corrosive or toxic substances. Serious accidents will result if the containers are broken by mistake during loading and unloading and transportation. When such items are transported by fuel tank trailer trucks, the likelihood of accidents is greatly reduced and the transport and handling of such items can be carried out more safely.
4. Reduce labor intensity, improve loading and unloading conditions
Liquid, powder, granular items are mostly used cans, jars, boxes, bags and other vessels for packaging, from the factory to the site, to go through many times of loading and unloading, and almost all manual loading and unloading, labor intensity is very big. Moreover, some items in the loading and unloading of dust or emit a certain smell, hinder the health of stevedores. The loading and unloading conditions and labor intensity of stevedores have been improved obviously by using tank trailer truck for transportation.
5. Reduce transportation costs
The use of oil tank semi trailer transportation, easy to realize the mechanization of loading, unloading, transportation, storage, not only save labor, but also save a lot of packaging materials (cans, altar, bags, boxes, etc.), so that transport costs greatly reduced.
Packaging & Delivery
| Package Size | 1300.00cm * 250.00cm * 395.00cm |
| Package Gross Weight | 7500.000kg |
