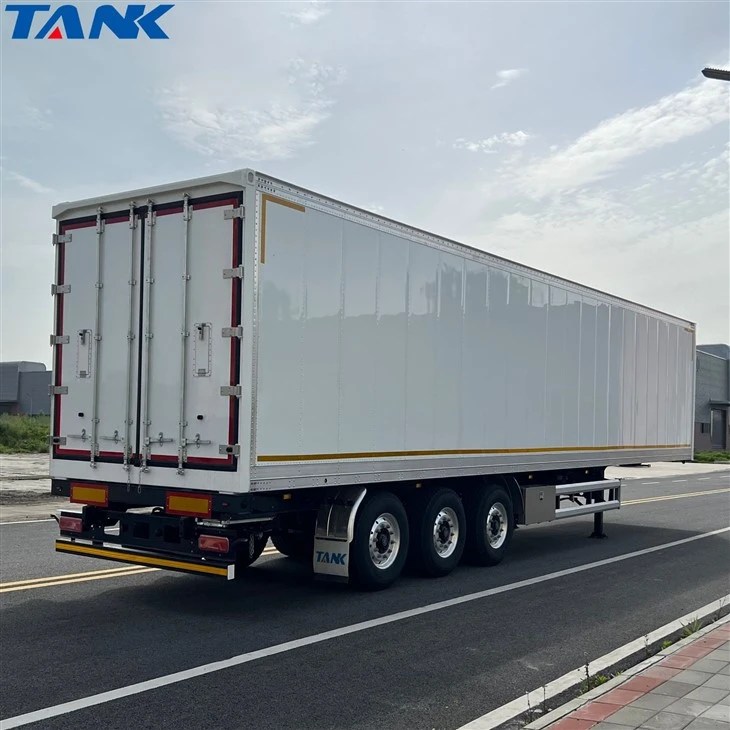

3 Axle Refrigerated Semi Trailer
Refrigerated semi-trailer refers to a semi-trailer equipped with insulation facilities and refrigeration system, mainly used for transporting food and goods that require low-temperature preservation.
Send Inquiry
Product Introduction
Products Description
Refrigerated semi-trailer refers to a semi-trailer equipped with insulation facilities and refrigeration system, mainly used for transporting food and goods that require low-temperature preservation.
| Details | Specification(for reference) |
| 1.Overall parameters | |
| Total length (including refrigerator) | 13600mm |
| Total width | 2500mm |
| Total height | 4000mm |
| Internal length | 13425mm |
| Internal width | 2330mm |
| Internal height | 3000mm |
| Internal volume | 78m³ |

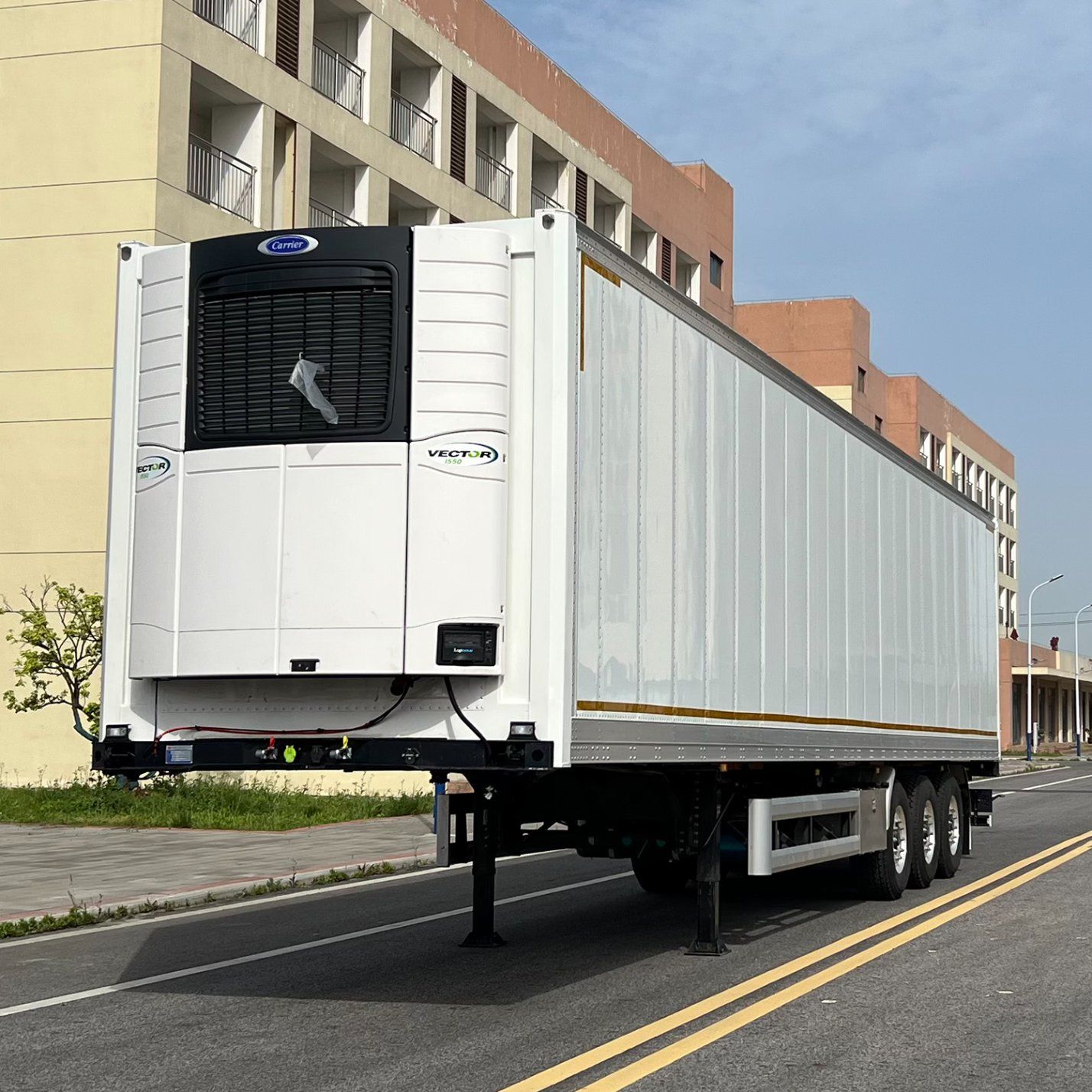

| Refrigerator model and accessories | Carrier 7300 -- Factory supplied and installed top air duct --The factory provides and installs aluminum profile front wall waterproof wall (front wall waterproof wall drilling) --The factory provides and installs the refrigerator protection brace |
| 2.Foam layer thickness | |
| Front wall | 100mm |
| Side plate | 75mm |
| Roof | 80mm |
| Floor | 64mm |
| Door plank | 76mm |
| 3.Car body configuration | |
| Front wall outer plate | Precoated white aluminum plate |
| Outer plate | Precoated white aluminum plate |
| Outer roof | Whole smooth aluminum plate |
| Outer door panel | Precoated white aluminum plate |
| Front wall inner plate | Food grade thermoplastic board |
| Inner side plate | Food grade thermoplastic board |
| Inner roof | Food grade thermoplastic board |
| Inner door lining | Food grade thermoplastic board |
| Sub floor | Food grade thermoplastic board |
| Wear plate | Aluminum profile wear plate is about 280mm high |
| Side panel air guide | The inner side panel is provided with a submerged vertical air guide slot |
| Floor form | Reinforced air guide aluminum alloy floor, with ventilation holes on t floors on both sides (Castle Floor) |
| Bottom beam | High strength I-beam |
| Floor stiffener | compound material |
| Back door type | Opposite door |
| Rear door hinge | Aluminum alloy profile hinge |
| Number of locking rods | Galvanized locking rod, 2 for each door, 4 in total |
| Rear door frame | stainless steel |
| Door anti-collision block | one on the left and one on the right |
| Rear door handle | Left door mounting handle |
| Water leakage device | Two sets at the front and rear, with rubber nozzles |
| Side door | have |
| 4.Traveling mechanism and light line | |
| Lower frame | Frame frame with girder |
| Traction pin plate | Box design |
| Traction pin | 50# Traction pin KZ1008 |
| Outrigger | Jost 28T linkage Outrigger |
| Suspension | Three axis mechanical suspension |
| Axle | BPW 12T axle |
| Braking form | drum brake |
| Tyre | Chaoyang brand 12 tubeless vacuum tires |
| Rim | 12 sets of carbon steel rims |
| ABS | With |
| lamps and lanterns | 24V LED lamps |
| Spare wheel carrier | 2 sets |
| spare tire | 1 sets |
| 5.other | |
| Interior ceiling lamp | One in front, one in the middle and one in the rear of three LED interior ceiling lamps |
| Side door | Right side double opening, (2400 * 2400, the specific position is based on the technical design) |
| hold-all | 1 aluminum, installed on the left |
| Front wall ventilation (door / window) | There is one, one on the left and one on the right |
| Rear door ventilator and accessories (lower right) | There is one. It is installed at the right rear door. The height from the floor: it is designed as low as possible |
| Improvement of cooling air circulation in compartment | Ventilation slot with inner side panel The rear door is lined with ventilation panel stiffeners (holes are punched on the front and side of the stiffeners) The outermost two sides of the castle floor are converted to T-shaped floor with transverse ventilation holes; |
| On board tools | Spare wheel crank, axle head nut, sleeve, pry bar |
product detail

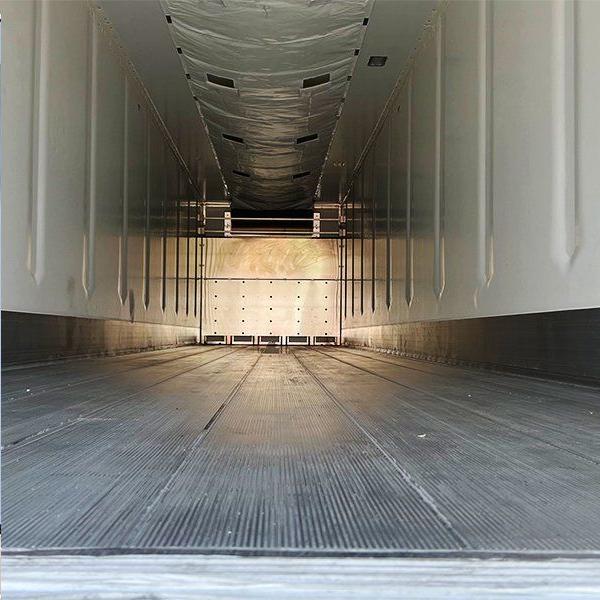

Food-grade inner plate
The inner panels of refrigerated trailer are the key parts inside the cargo compartment that come into direct contact with the goods. All interior plates meet food-grade standards. Keep all trailer contents clean and secure.
Materials of each part
The panel adopts the European cyclopentane refrigerator car foaming technology, adopts galvanized aluminum plate inner and outer skins, and high-end polyurethane foam thermal insulation material is used in the middle.
main products
Our advantages
01
own factory
We have our own factory and can accept customization to meet various requirements of customers.
02
Professional team
With rich experience, we can provide semi-trailer solutions according to customer needs.
03
rich experience
We have many years of export experience. Our products are sold all over the world. We have a professional after-sales service team, including technical support personnel and after-sales engineers, to ensure that problems are solved in a timely manner.
