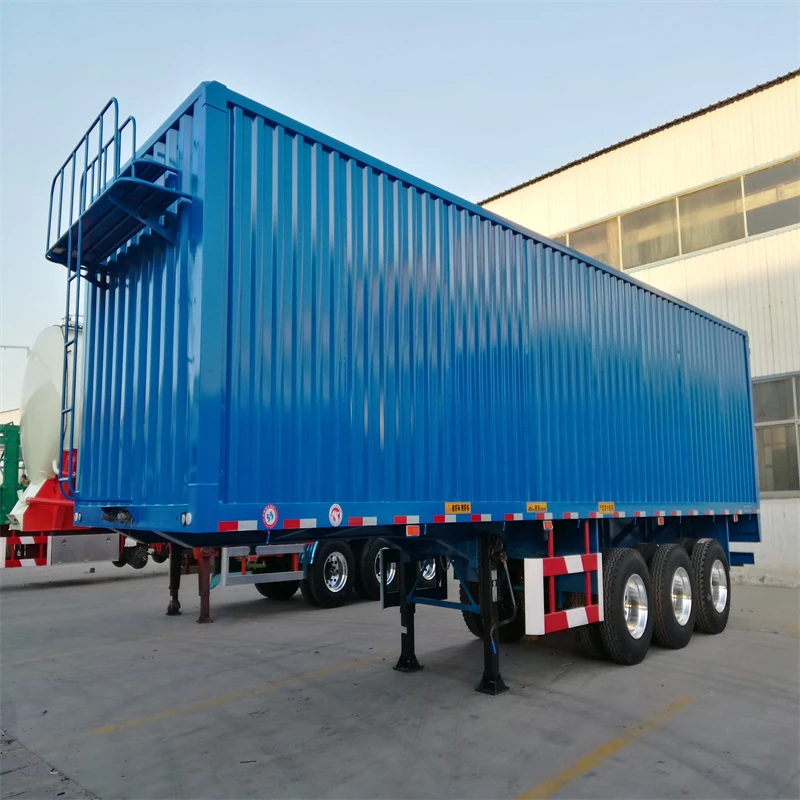

Box Cargo Transport Semi Trailer
The frame of the box cargo transport semi trailer adopts a through beam structure, and the longitudinal beams are straight beams or goose neck beams, which are automatically buried and welded. The frame is shot blasted. The box structure adopts high-strength cold-rolled corrugated steel plate, with no skeleton structure, large loading space, and reasonable distribution inside the box. It has various forms such as closed, push-pull and open, etc., to meet the diverse needs of users.
Applicable Scenarios
Box semi trailer is suitable for the transportation of various goods, especially for transporting loose cargo and valuable goods that are moisture resistant. Its enclosed side protection design can effectively reduce lateral risks and energy consumption during high-speed driving of vehicles. The rear protection design is reasonable and easy to operate.
Our box cargo transport semi trailer from engineer design the drawing to cutting steel, welding main beam and other accessories, sandblasting rust removal, clean up welding slag, painting, install axle and tires, install electrical circuits, each step has strict quality control to make sure the semi trailer have longer service life.
Specification
|
Size |
12500mm*2500mm*3000mm(Optional) |
|
Payload |
30-80T |
|
Main beam |
Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm(Optional) |
|
Side beam |
18# channel steel (Optional) |
|
Cross member |
12# channel steel (Optional) |
|
Top side beam |
14# channel steel (Optional) |
|
Bearing beam |
9pcs 6# channel steel |
|
Pillar |
Thickness 8mm (Optional) |
|
Floor |
4mm (Optional) |
|
Side wall |
Height 2400mm thickness 3mm (Optional) |
|
Door |
4 couple each side 3pcs lock rod on each door (Optional) |
|
Door size |
1.8m (Optional) |
|
Axle |
3 axle FVWA brand 13T (Optional) |
|
Suspension |
American type suspension (Optional) |
|
Leaf spring |
10pcs*13mm*90mm (Optional) |
|
Tire |
12R22.5 12pcs (Brand and specs optional) |
|
Wheel rim |
9.0-22.5 12pcs (Brand and specs optional) |
|
Kingpin |
2"/3.5" bolt-in /welded king pin |
|
Landing gear |
Two-speed, manual operating ,heavy duty landing gear 28T |
|
Braking system |
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
|
ABS |
Optional |
|
Light |
LED 8 side lights and 2 rear lights 2 width lamp |
|
Painting |
Complete chassis sand blasting to clean rust ,1coat of anti corrosive prime,2coats of final painting |
|
Accessories |
One standard tool box,one/two spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
